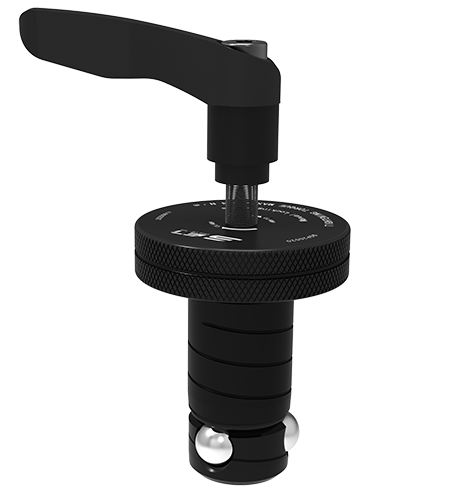

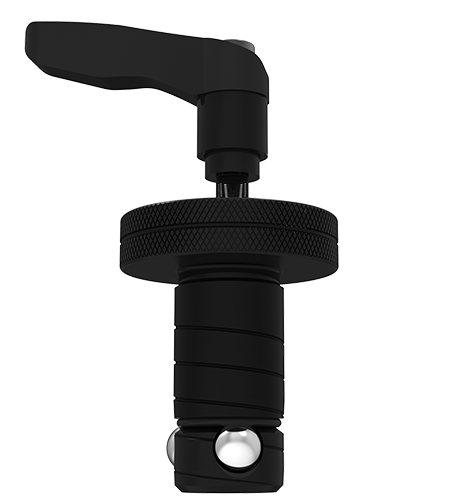

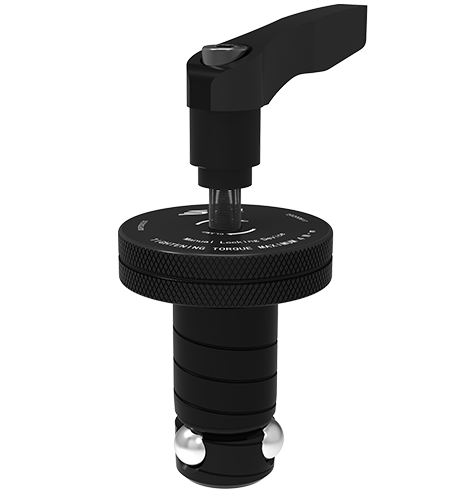

Ball Lock With Adjustable Handle

  • Repeated positioning accuracy <±0.013m
  • Clamping force 5.3kN
  • Tightening torque 4.5Nm
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
Detail drawing
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
  • Ball Lock With Adjustable Handle
Contact us
SET Industrial | Zero-Point Positioning & CNC Workholding Product parameters SET Industrial | Zero-Point Positioning & CNC Workholding Drawing SET Industrial | Zero-Point Positioning & CNC Workholding Data download SET Industrial | Zero-Point Positioning & CNC Workholding Related accessories SET Industrial | Zero-Point Positioning & CNC Workholding Product Technical FAQs SET Industrial | Zero-Point Positioning & CNC WorkholdingSourcing & Ordering FAQs
Product Overview

Manual quick opening and locking with adjustable handle ball lock.
Repeated positioning accuracy <±0.013mm, clamping force 5.3kN, tightening torque 4.5Nm.
Used in combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched in a few seconds to maximize the use of the workbench.
Hardened alloy steel material, surface and screw hardening.
Suitable for metal or non-metal processing.

Ball Lock With Adjustable Handle
Product Features

  • Manual fast opening and locking;

  • Surface and screw hardening treatment;

  • In combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched within a few seconds;

SET Industrial | Zero-Point Positioning & CNC Workholding

  • Material: hardened alloy steel;

  • Repeated positioning accuracy <±0.013mm;

  • The indexing table is used to the maximum extent.

Product dimension diagram

Order number Clamping force (kN) Torque (Nm) Thickness of transition plate ±0.13 ØD1 ØD2 H H1 H2
(min)		 H3 L Weight(g)
QSB-16020 5.3 4.5 20 16 32 36.5 8 38.5 31 40 140
QSB-16025 5.3 4.5 25 16 32 41.5 8 33.5 31 40 150
QSB-20020 13.3 5.3 20 20 40 39.5 10 37.5 31 40 240
QSB-20025 13.3 5.3 25 20 40 44.5 10 37.5 31 40 270
QSB-25020 30 11 20 25 45 44 10 48.5 42.5 65 360
QSB-25025 30 11 25 25 45 49 10  48.5 42.5 65 390
QSB-30020 44 18 20 30 50 49 13 71 54 80 470
QSB-30025 44  18 25 30 50 54 15 71 54 80 500
Public information
SET Industrial | Zero-Point Positioning & CNC Workholding All SET Industrial | Zero-Point Positioning & CNC Workholding 3D model diagram SET Industrial | Zero-Point Positioning & CNC Workholding Installation instruction SET Industrial | Zero-Point Positioning & CNC Workholding User Manual SET Industrial | Zero-Point Positioning & CNC Workholding Sample book
SET Industrial | Zero-Point Positioning & CNC Workholding List Type Latest updates
  • Q1. What is a short-cone ball lock zero-point positioning system?

    A short-cone ball lock zero-point positioning system uses a short-cone locating interface combined with a ball-lock clamping mechanism to position and secure compatible fixtures or pallets. The system is designed for repeatable CNC workholding and quick fixture changeover.

  • Q2. How does the short-cone ball lock mechanism work?

    The short-cone locating interface establishes the positioning reference between the zero-point receiver and the compatible fixture or pallet. The ball-lock mechanism secures the interface, while the pneumatic system can be used to release the clamping mechanism during fixture changeover.

  • Q3. Is the short-cone zero-point system suitable for 5-axis machining?

    Yes. The compact locating interface and repeatable positioning concept make the system suitable for selected 5-axis machining and multi-axis workholding applications. The final configuration should be selected according to the machine, fixture geometry and machining requirements.

  • Q4. Is this zero-point system pneumatic?

    This configuration uses pneumatic actuation for releasing the clamping mechanism. The exact operating pressure, clamping force and installation requirements depend on the selected model and technical specification.

  • Q5. What is the positioning repeatability?

    The applicable SET configuration can provide repeatability up to 0.005 mm. Actual performance depends on the product model, installation accuracy, locating interface, fixture condition and machining environment. Please refer to the specific product drawing for the exact specification.

  • Q6. Can the system be used with custom fixtures?

    Yes. The zero-point interface can be integrated with compatible custom fixtures, pallets and workholding plates. Fixture dimensions, locating interface, pull studs and clamping requirements should be confirmed before production.

  • Q7. Can the zero-point system be used for automated fixture changeover?

    Yes. The pneumatic configuration can be integrated into automated fixture and pallet changeover systems. Additional sensors, air connections, robotic interfaces or control components may be required depending on the automation design.

  • Q8. How do I select the correct short-cone zero-point system?

    Selection depends on the required positioning accuracy, clamping force, fixture size, workpiece weight, machine-table configuration, installation method and automation requirements. SET can recommend a suitable configuration after reviewing the machine and fixture information.

  • Q1. Are you a zero-point positioning system manufacturer?

    Yes. SET is a manufacturer specializing in zero-point positioning systems, zero-point clamping systems, gripping systems, clamping systems and customized tooling solutions for CNC machining and industrial automation.

  • Q2. Can SET provide customized zero-point workholding solutions?

    Yes. SET provides customized zero-point positioning and workholding solutions according to machine-table dimensions, fixture requirements, workpiece size, positioning accuracy, clamping force and automation conditions.

  • Q3. Can you provide technical drawings and product specifications?

    Yes. Technical drawings, product specifications and configuration information can be provided for applicable products. Customers can contact SET with their machine model, fixture dimensions and application requirements to confirm the correct configuration.

  • Q4. Can SET support OEM or customized projects?

    SET can support customized industrial workholding and tooling projects. OEM or non-standard requirements should be evaluated according to the technical specifications, application conditions and production requirements of the project.

  • Q5. What information should I provide when requesting a quotation?

    For a zero-point positioning system quotation, provide the CNC machine type, machine-table dimensions, fixture or pallet dimensions, workpiece weight, required positioning repeatability, clamping requirements, pneumatic conditions and automation requirements. Drawings or photos are also helpful for technical evaluation.
