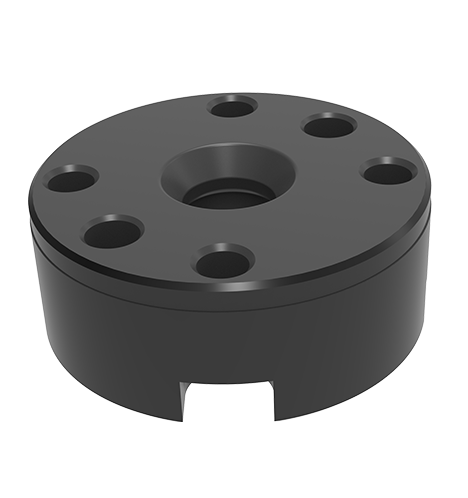

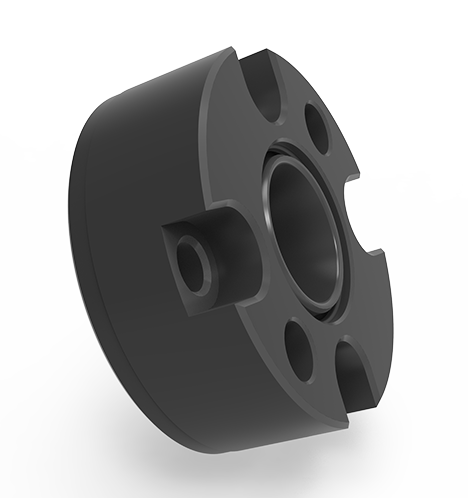

Product Overview
Its body is quenched and tempered Ferrosoferric Oxide film. The cone sleeve has salt bath soft nitriding treatment.
It can cooperate with cone pin SDQS-5-CP and protective sleeve SDQS-5-B.
Product Features
Body: quenched and tempered Ferrosoferric Oxide film;
The cone sleeve has salt bath soft nitriding treatment.
Product dimension diagram
| Dimension number | Type | A | B | C | D (g6) | E | F | Jacking gorce (N) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| SDQS-5-C | Cone acceptance sleeve | M5*0.8 | 4.5 | 30 | 38 | 10 | 15 | 300 | 100 |
| SDQS-5-S | Straight column acceptance sleeve | -- | 101 | ||||||
| SDQS-10-C | Cone acceptance sleeve | M6*1 | 37 | 45 | 14 | 19 | 450 | 179 | |
| SDQS-10-S | Straight column acceptance sleeve | -- | 184 | ||||||
| SDQS-20-C | Cone acceptance sleeve | 5.5 | 45 | 55 | 18 | 24 | 680 | 337 | |
| SDQS-20-S | Straight column acceptance sleeve | -- | 341 |
| Dimension number | D1 (H7) | D2 | A (±0.05) | B | C |
|---|---|---|---|---|---|
| SDQS-5-C/S | 38 | 13 | 15.5 | 23 | M4 |
| SDQS-10-C/S | 45 | 16 | 19.5 | 28 | |
| SDQS-20-C/S | 55 | 20 | 24.5 | 24 | M5 |
