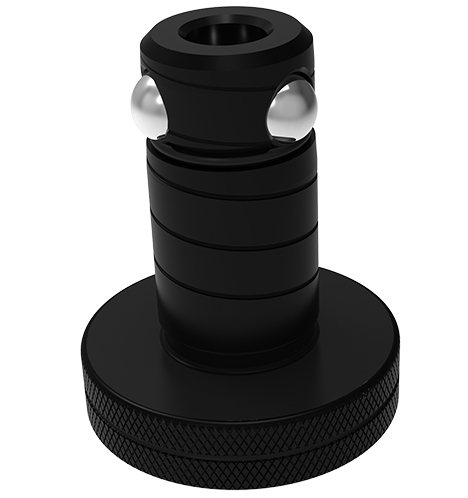

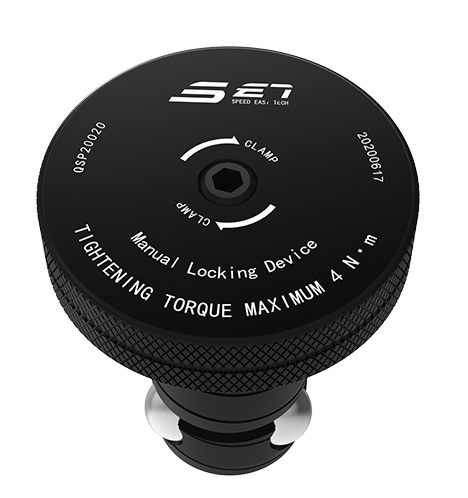

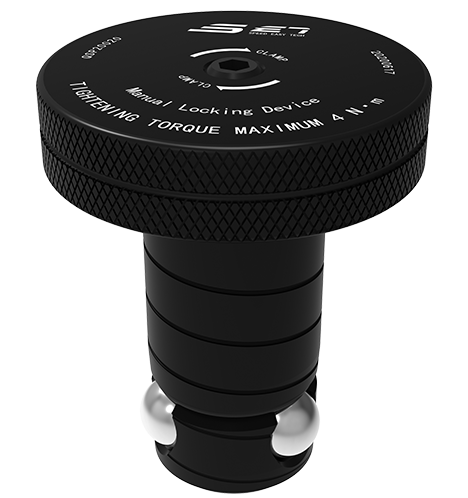

Positioning lock Ball lock quickly opens and locks manually.
Used in combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched in a few seconds to maximize the use of the workbench.
Hardened alloy steel material, surface, and screw hardening.
Suitable for metal or non-metal processing.
Manual fast opening and locking;
Surface and screw hardening treatment;
In combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched within a few seconds;
Material: hardened alloy steel;
Repeated positioning accuracy <±0.013mm;
The indexing table is used to the maximum extent.
| Order number | Clamping force(kN) | Torque(Nm) | Thickness of transition plate ±0.13 | D1 | ØD2 | H | H1 | M | SW | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|
| QSP-16020 | 5.3 | 4.5 | 20 | 32 | 16 | 36.5 | 8 | M6 | 3 | 100 |
| QSP-16025 | 5.3 | 4.5 | 25 | 32 | 16 | 41.5 | 8 | M6 | 3 | 110 |
| QSP-20020 | 13.3 | 5.3 | 20 | 40 | 20 | 39.5 | 10 | M6 | 3 | 200 |
| QSP-20025 | 13.3 | 5.3 | 25 | 40 | 20 | 44.5 | 10 | M6 | 3 | 230 |
| QSP-25020 | 30 | 11 | 20 | 45 | 25 | 44 | 10 | M8 | 4 | 270 |
| QSP-25025 | 30 | 11 | 25 | 45 | 25 | 49 | 10 | M8 | 4 | 300 |
| QSP-30020 | 44 | 18 | 20 | 50 | 30 | 49 | 13 | M10 | 5 | 360 |
| QSP-30025 | 44 | 18 | 25 | 50 | 30 | 54 | 13 | M10 | 5 | 400 |
