简体中文Straight Column Acceptance Sleeve

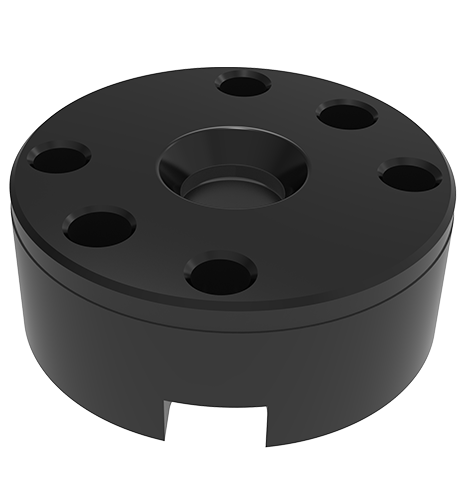

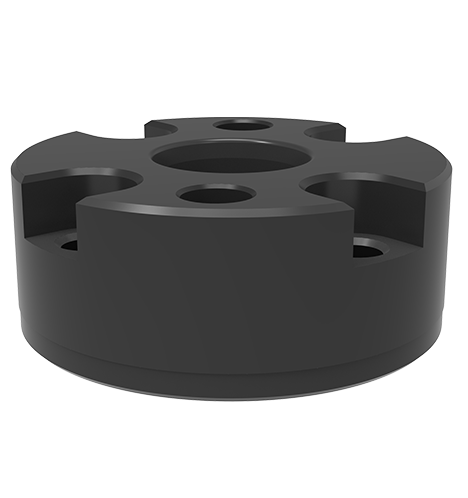

- Its body is quenched and tempered Ferrosoferric Oxide film.
Product parameters
Drawing
Data download
Related accessories
Product Overview
Its body is quenched and tempered Ferrosoferric Oxide film.
It can cooperate with straight column pin SDQS-5-SP and ball lock protective sleeve SDQS-5-B.
Product Features
Body: quenched and tempered Ferrosoferric Oxide film;
The cone sleeve has salt bath soft nitriding treatment.
Product dimension diagram
| Dimension number | Type | A | B | C | D (g6) | E | F | Jacking gorce (N) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| SDQS-5-C | Cone acceptance sleeve | M5*0.8 | 4.5 | 30 | 38 | 10 | 15 | 300 | 100 |
| SDQS-5-S | Straight column acceptance sleeve | -- | 101 | ||||||
| SDQS-10-C | Cone acceptance sleeve | M6*1 | 37 | 45 | 14 | 19 | 450 | 179 | |
| SDQS-10-S | Straight column acceptance sleeve | -- | 184 | ||||||
| SDQS-20-C | Cone acceptance sleeve | 5.5 | 45 | 55 | 18 | 24 | 680 | 337 | |
| SDQS-20-S | Straight column acceptance sleeve | -- | 341 |
| Dimension number | D1 (H7) | D2 | A (±0.05) | B | C |
|---|---|---|---|---|---|
| SDQS-5-C/S | 38 | 13 | 15.5 | 23 | M4 |
| SDQS-10-C/S | 45 | 16 | 19.5 | 28 | |
| SDQS-20-C/S | 55 | 20 | 24.5 | 24 | M5 |
