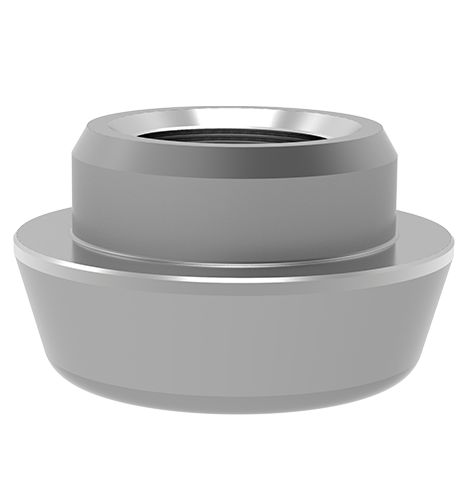

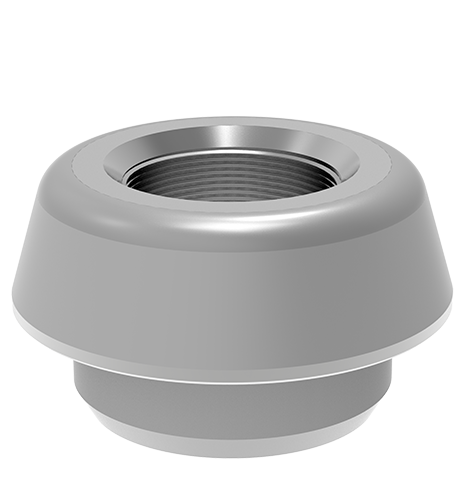

It has hardening treatment of the surface.
Its height is 10mm, and weight is 8g.
It can limit the freedom degrees of X direction and Y direction.
It is suitable for zero-point locator of manual conical pull-down type.
Its accuracy requirement is high. It has hardening treatment of the surface;
It is suitable for zero-point locator of manual conical pull-down type.
It can limit the freedom degrees of X direction and Y direction;

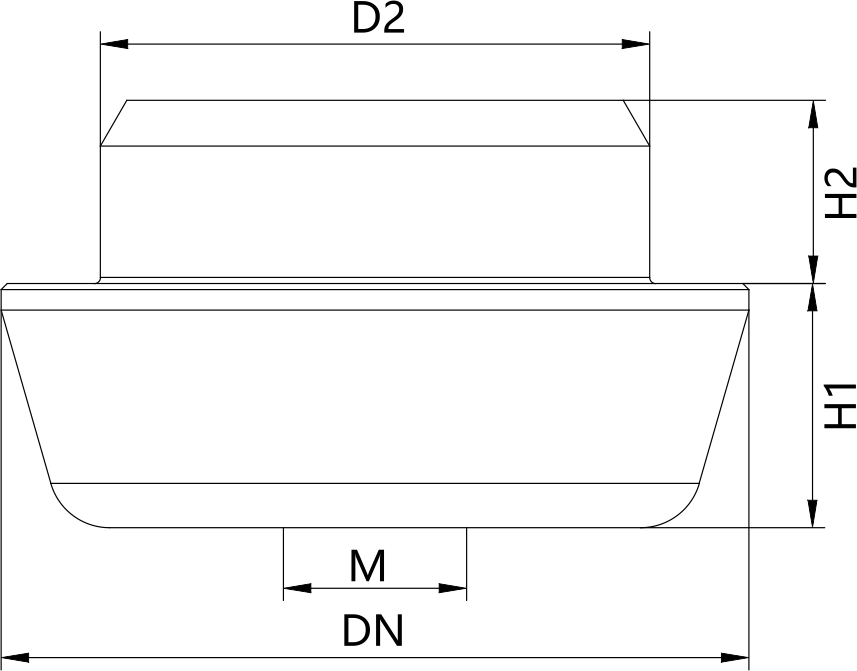

| Dimension number | ØDN | ØD2 (G6) | H1 | H2 | M | Weight (kg) |
|---|---|---|---|---|---|---|
| SD08-CP40 | 15.5 | 12 | 5 | 5 | M10 | 0.008 |
| SD12-CP60 | 24.5 | 20 | 8 | 6 | M12 | 0.027 |
| SD16-CP80 | 31.5 | 25 | 10 | 7.5 | M20 | 0.051 |
