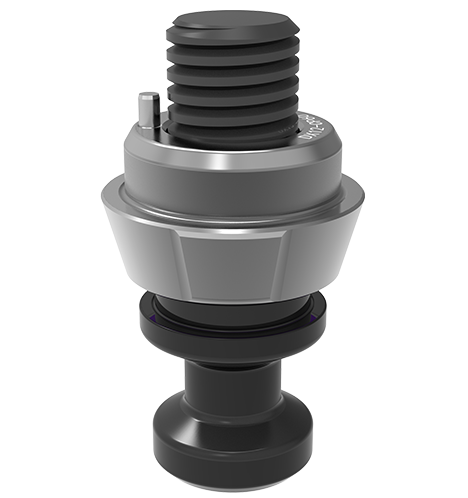

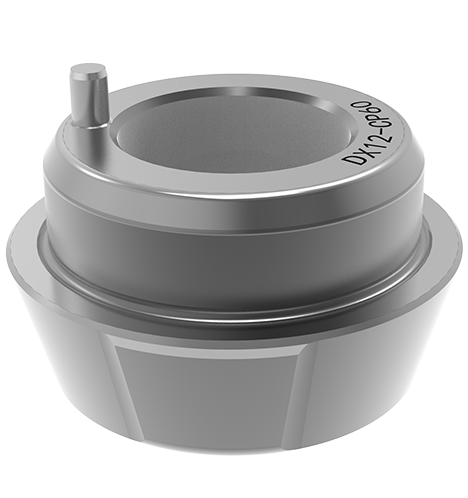

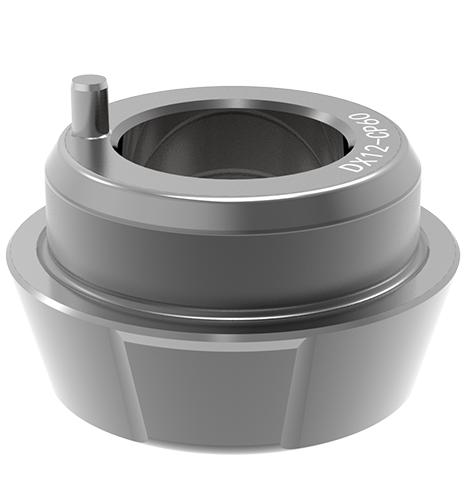

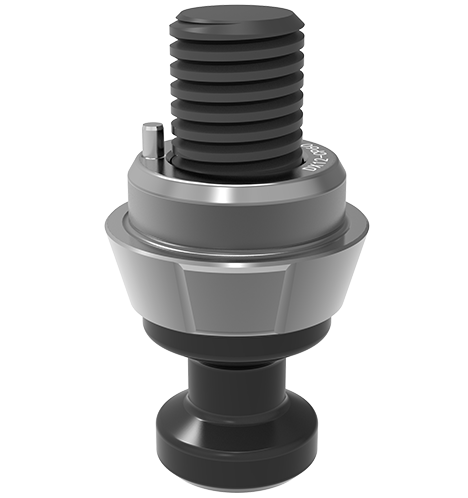

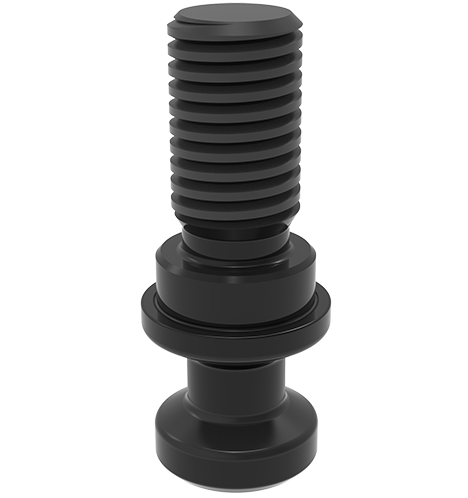

It has hardening treatment of the surface.
It only limits the rotational freedom degree, and has directional function.
The angle between the pilot hole and the locating edge is 45°.
It is suitable for zero-point locator of manual conical pull-down type.
It has hardening treatment of the surface;
The angle between the pilot hole and the locating edge is 45°;
It only limits the rotational freedom degree, and has directional function;
It is suitable for zero-point locator of manual conical pull-down type.

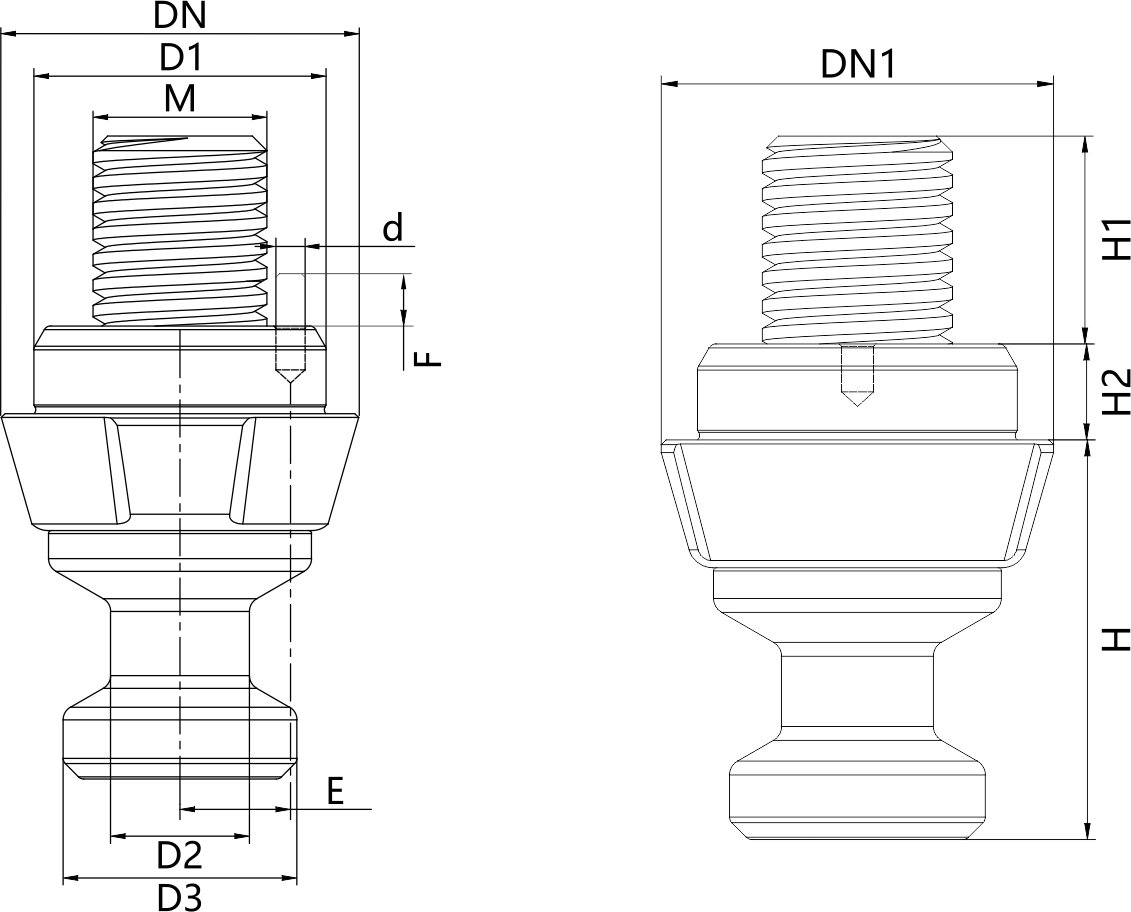

| Dimension number | ØDN | ØDN1 | ØD1 (G6) | ØD2 | ØD3 | E | F | ød | H | H1 | H2 | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX08-CP40 | 15.5 | 16 | 12 | 6.5 | 11 | 5.5 | 4 | 2 | 16.5 | 12 | 5 | M8 | 0.02 |
| DX12-CP60 | 24.5 | 25 | 20 | 9.5 | 16 | 7.6 | 4 | 2 | 25 | 18 | 6 | M12 | 0.07 |
| DX16-CP80 | 31.5 | 32 | 25 | 13 | 21 | 9.5 | 5 | 2 | 33 | 22 | 7.5 | M16 | 0.15 |
