It has hardening treatment of the surface.
Its height is 28.5mm, and weight is 18g.
It not only can increase the tension force, but also can ensure the pallet is fully positioned, avoid over positioning.
It is suitable for zero-point locator of manual conical pull-down type.
Its accuracy requirement is high. It has hardening treatment of the surface;
It is suitable for zero-point locator of manual conical pull-down type.
It can limit the freedom degrees of X direction and Y direction;

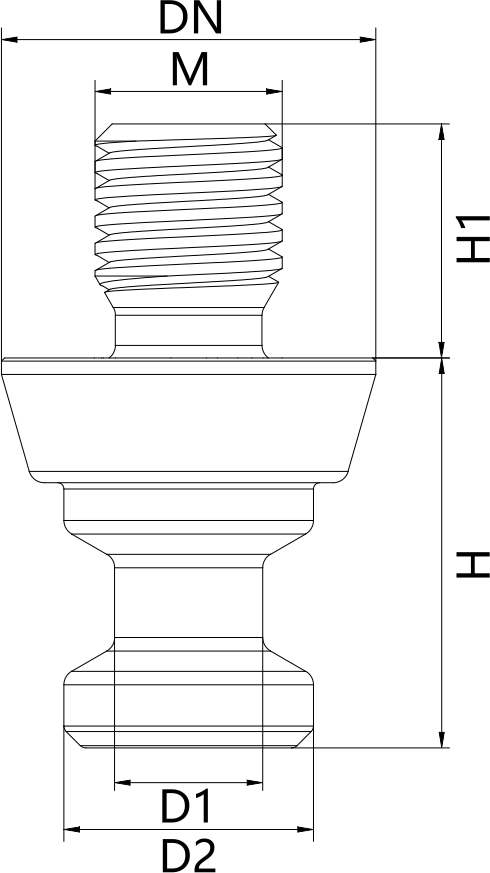

| Dimension number | ØDN | ØD1 | ØD2 | H | H1 | M | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SJ08-CP40 | 15.5 | 6.5 | 11 | 16.5 | 12 | M8 | 0.018 |
| SJ12-CP60 | 24.5 | 9.5 | 16 | 25 | 18 | M12 | 0.065 |
| SJ16-CP80 | 31.5 | 13 | 21 | 33 | 22 | M16 | 0.14 |
If you are interested in our products, please consult us
