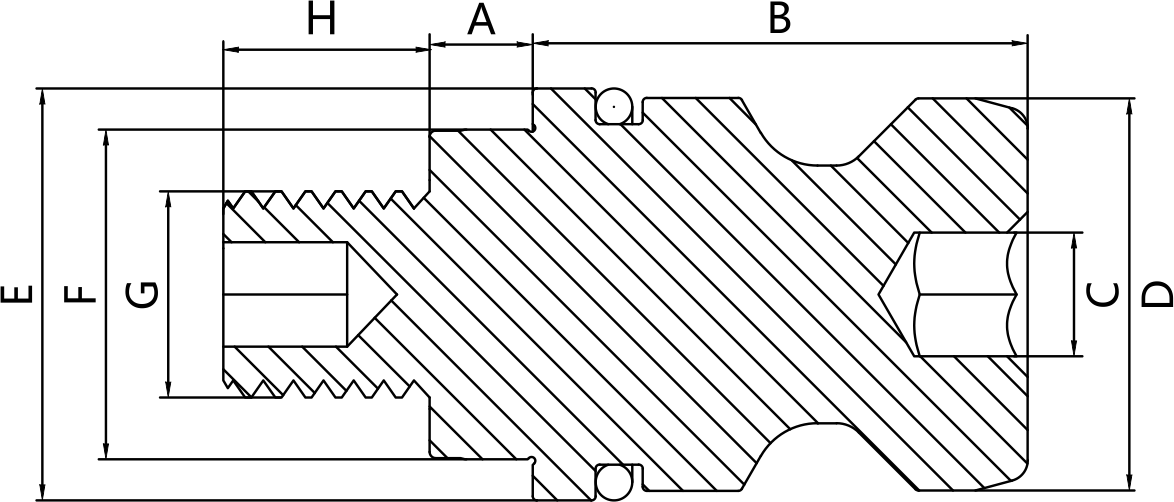

Drawing
Data download

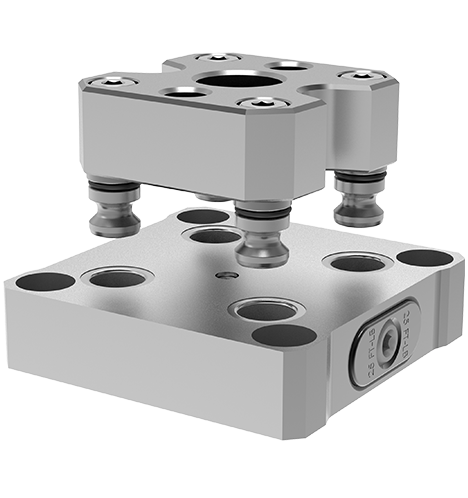

Related accessories
It has hardening treatment of the surface.
Its height is 37.6mm, and weight is 20g.
It can limit the freedom degrees of X direction and Y direction.

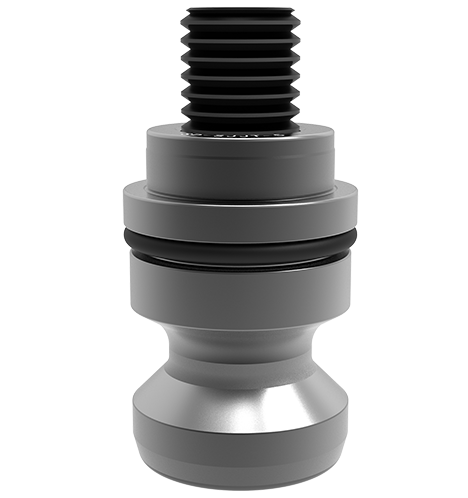

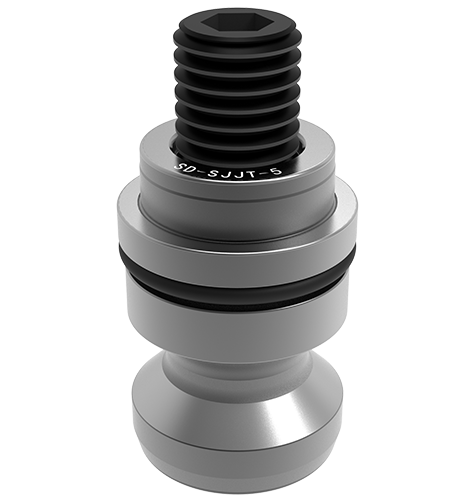

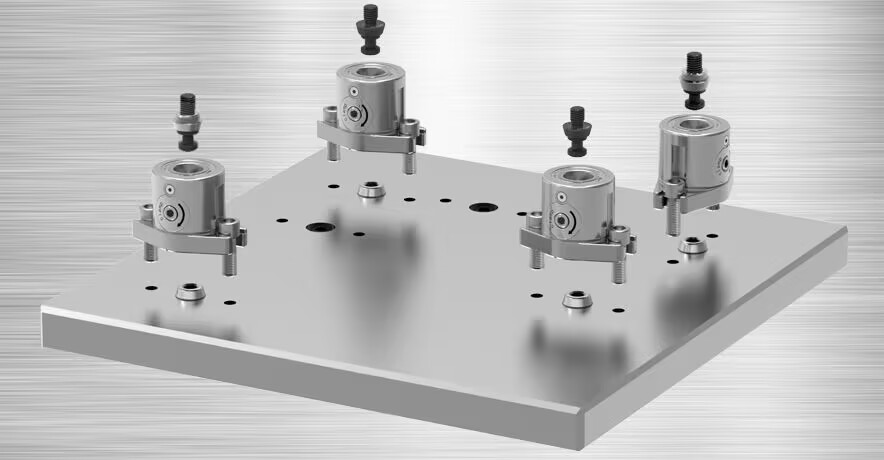

It is the special pin of 52mm manual base plate
Its accuracy requirement is high. It has hardening treatment of the surface;
It is the special pin of 52mm manual base plate.
This positioning pin can limit the freedom degrees of X direction and Y direction;
| Dimension number | Matched locator | A | B | C | D | E | F | G | H (H6) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SJJT-52 | 52mm manual base plate | 5 | 19.6 | SW6 | 15.2 | 16 | 12 | M8 | 13 | 0.028 |
| SJJT-96 | 96mm manual base plate | 5 | 24 | SW6 | 19 | 20 | 16 | M10 | 15 | 0.045 |
If you are interested in our products, please consult us
