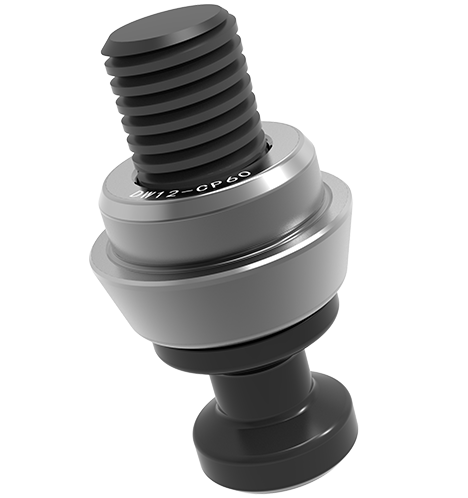

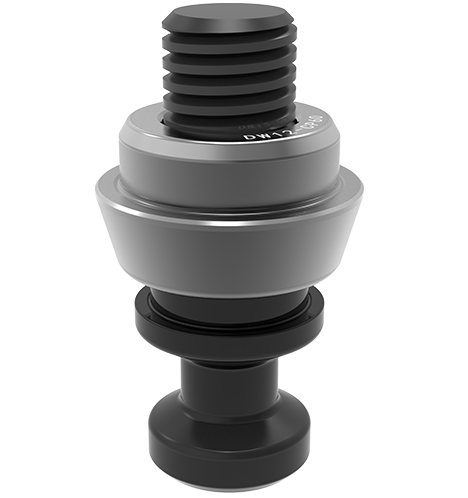

It has hardening treatment of the surface.
Its height is 33.5mm, and weight is 20g.
This positioning pin can limit the freedom degrees of X direction and Y direction.
It is suitable for zero-point locator of manual conical pull-down type.
Its accuracy requirement is high. It has hardening treatment of the surface;
It is suitable for zero-point locator of manual conical pull-down type.
This positioning pin can limit the freedom degrees of X direction and Y direction;

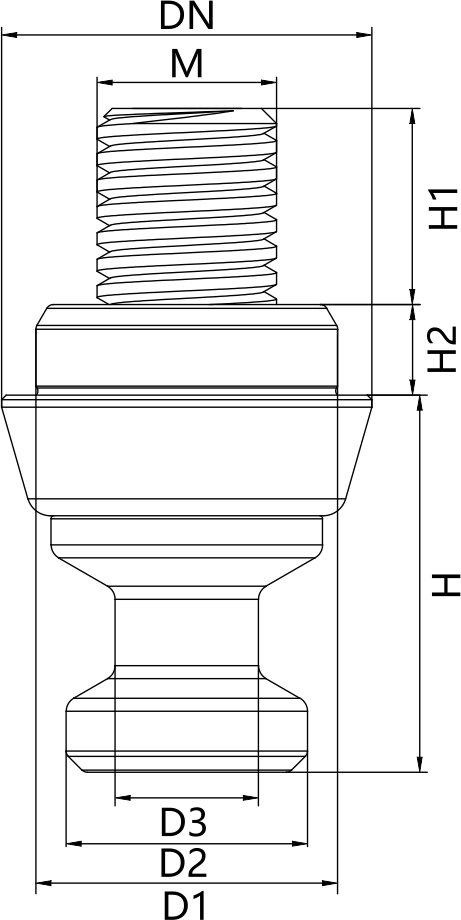

| Dimension number | ØDN | ØD1 (G6) | ØD2 | ØD3 | H | H1 | H2 | M | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DW08-CP40 | 16 | 12 | 11 | 6.5 | 16.5 | 12 | 5 | M8 | 0.02 |
| DW12-CP60 | 25 | 20 | 16 | 9.5 | 25 | 18 | 6 | M12 | 0.07 |
| DW16-CP80 | 32 | 25 | 21 | 13 | 33 | 22 | 7.5 | M16 | 0.15 |
