96mm Simplex Vise

  • Repeated positioning accuracy <±0.01mm
  • Clamping force 15kN
  • Clamping range 266mm
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
Detail drawing
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
  • 96mm Simplex Vise
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

96mm simplex vise is a vise that can be quickly opened, locked, and held by hand.
Length 360mm, clamping range 266mm, nail spacing 96mm.
Repeated positioning accuracy <±0.01mm, clamping force 15kN.
Precision fit, reduces the jaws up and down, and can be used for blank, smooth, dovetail clamping.
Suitable for metal or non-metal cutting, fast switching with 96mm manual 4-unit positioner.

96mm Simplex Vise
Product Features

  • 96mm nail spacing vise;

  • Material: alloy structural steel;

  • Repeated positioning accuracy <±0.01mm;

  • Suitable for blank, smooth, dovetail clamping.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Manual fast opening, locking, simplex clamping;

  • Surface and guide hardening treatment;

  • Precision fit, reduce the jaws up and down;

Product dimension diagram

Order number Unlocking method Clamping force (kN) Maximum operating torque (N·m) Weight (kg)

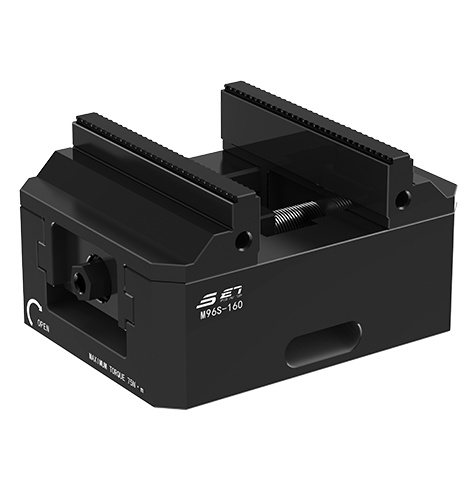

M96S-160 Manual operation 15 75 8.4

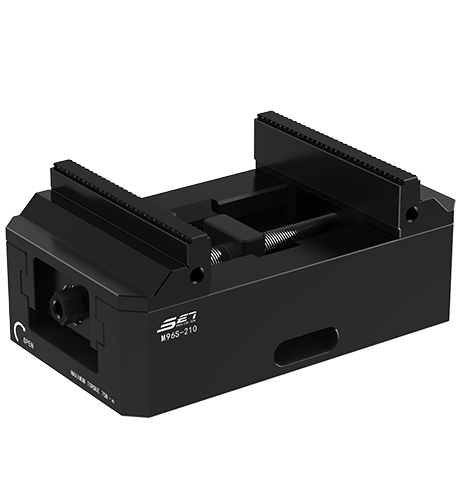

M96S-210 Manual operation 15 75 10.2

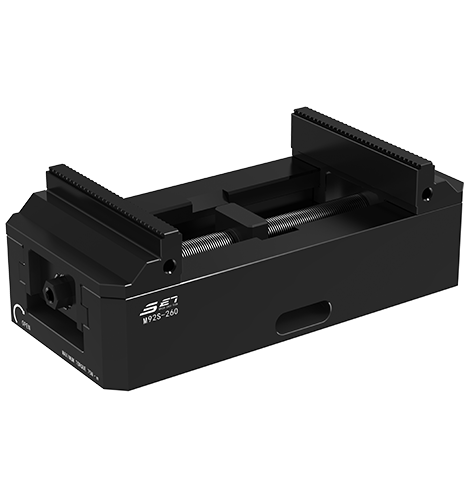

M96S-260 Manual operation 15 75 12

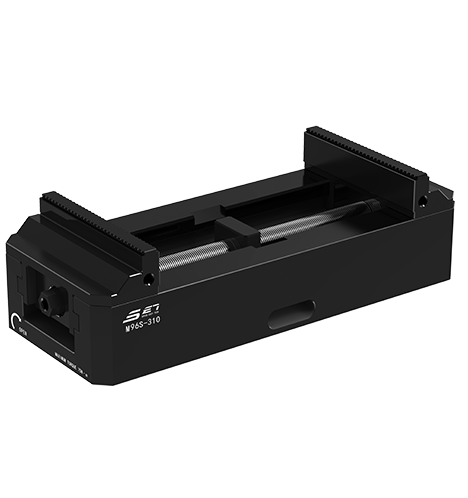

M96S-310 Manual operation 15 75 14

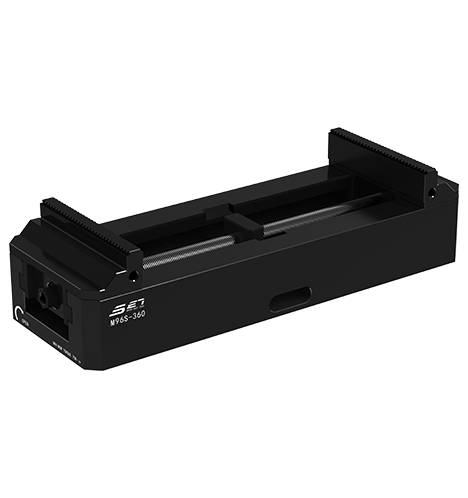

M96S-360 Manual operation 15 75 15.9

Order number A B
 M160 160 66
 M210 210 116
 M260 260 166
 M310 310 216
 M360 360 266
