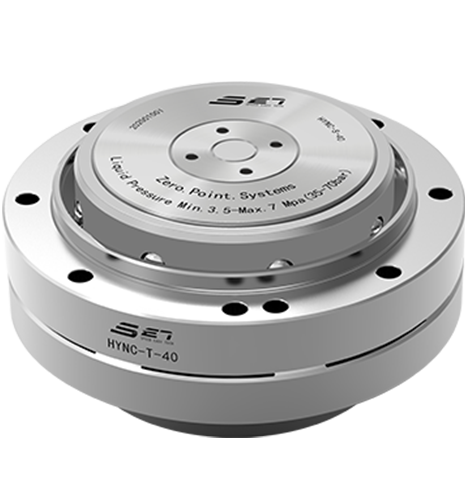

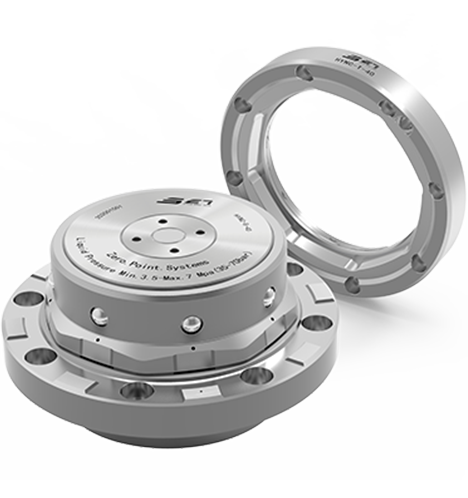

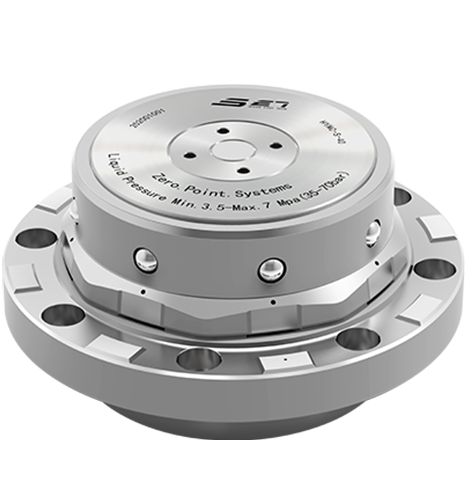

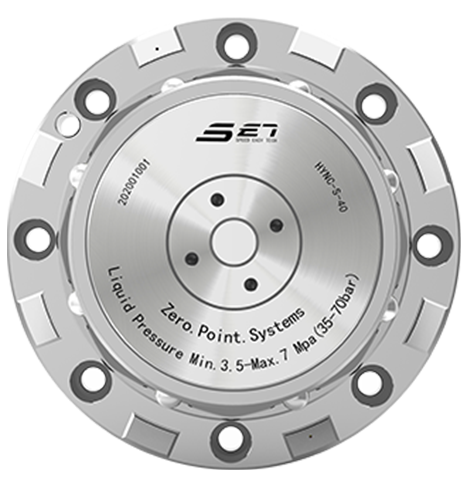

Octagonal Cone Shape Zero Locator

  • Repeated positioning accuracy <0.003mm
  • Clamping force 8kN
  • Eight-sided constraint, suitable for single use
  • The temperature ranges from 0 °C to 70 °C
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
Detail drawing
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
  • Octagonal Cone Shape Zero Locator
Contact us
SET Industrial | Zero-Point Positioning & CNC Workholding Product parameters SET Industrial | Zero-Point Positioning & CNC Workholding Drawing SET Industrial | Zero-Point Positioning & CNC Workholding Data download SET Industrial | Zero-Point Positioning & CNC Workholding Related accessories SET Industrial | Zero-Point Positioning & CNC Workholding Product Technical FAQs SET Industrial | Zero-Point Positioning & CNC WorkholdingSourcing & Ordering FAQs
Product Overview

Octagonal conical zero positioner can be unlocked by air pressure and mechanically locked by spring.
Repeated positioning accuracy <0.003mm, a single locator clamping force 8kN, air pressure 0.6MPa, lifting force 1kN.
Eight-sided constraint, suitable for single use.
With clamping detection interface, positioning surface cleaning function.
Hardened stainless steel, temperature range 0℃~70℃. It is suitable for automation, lathe, CNC, four-axis machining and the occasions with high requirements for centering accuracy, axial force and centrifugal force.

Octagonal Cone Shape Zero Locator
Product Features

  • Pneumatic/hydraulic/mechanical unlock, spring lock;

  • Repeated positioning accuracy <0.003mm;

  • Eight-sided constraint, suitable for single use;

SET Industrial | Zero-Point Positioning & CNC Workholding

  • Material: hardened stainless steel;

  • With clamping detection interface;

  • With positioning surface cleaning function.

Product dimension diagram

Model number Pressure pattern Hydraulic type
HQNC-10 HQNC-20 HQNC-40 HQNC-60 HYNC-10 HYNC-20 HYNC-40 HYNC-60
Clamping force (kN) 3.5  5  8  15  10  16  25  40
Lifting Force Atmospheric pressure 0.6MPa(kN) 0.5  0.5  1  1.5  /

Hydraulic pressure

3.5MPa(kN)

 / 1.5  3.2  4.6  4.5
Hydraulic pressure5MPa(kN) / 5.7  9.8  15.3  20.1
Hydraulic pressure7MPa(kN) / 11.4  18.7  29.4  40.9
Allowable eccentricity when pallet clamping(mm) ±1 ±1 ±1 ±1.5 ±1 ±1 ±1 ±1.5
Lift (pallet lift when relaxed)(mm) 0.3mm
Operating ambient temperature(℃) 0~70℃
Weight The main clamp(kg) 1.8  3.4  6.8  12  1.8  3.4  6.8  12
Tray adapter(kg) 0.4  0.8  1.6  3  0.4  0.8  1.6  3

Outline dimensions

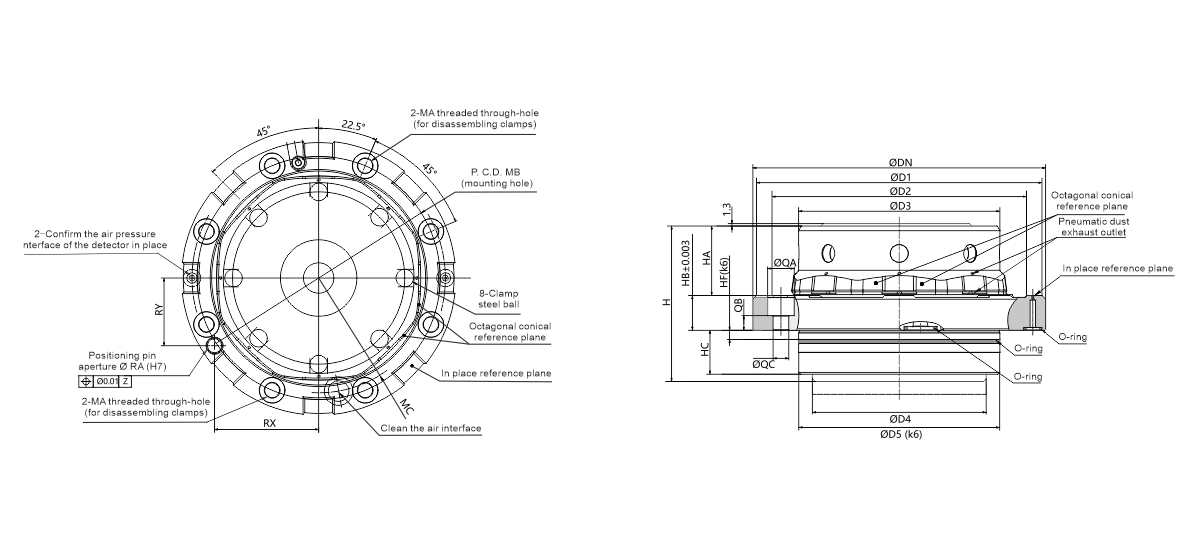

Main calmping apparatus

Order number ØDN ØD1 ØD2 ØD3 ØD4 ØD5 H HA HB HC

HQNC-S-10

HYNC-S-10

 100 97 89 70 60 74 55 21 12 21

HQNC-S-20

HYNC-S-20

 125 121 111 86 75 89 71.5 29 15 21

HQNC-S-40

HYNC-S-40

 160 156 140 110 95 110 82 38 19 24

HQNC-S-60

HYNC-S-60

 200 194 178 142 115 130 92.5 41 23 25

Order number HF ØQA ØQB ØQC MA MB MC

ØRA

(H7)

ØRX

(±0.01)

ØRY

(±0.01)

HQNC-S-10

HYNC-S-10

 4.4 9.5 5.5 5.5 M6*1 89 R43.5 5 38 25

HQNC-S-20

HYNC-S-20

 4.4 11 6.5 6.8 M8*1.25 110 R55 6 47 31

HQNC-S-40

HYNC-S-40

 4.4 14 7 8.5 M10*1.5 140 R67 8 60 39

HQNC-S-60

HYNC-S-60

 4.4 17.5 11 11 M12*1.75 175 R81.5 10 77 49

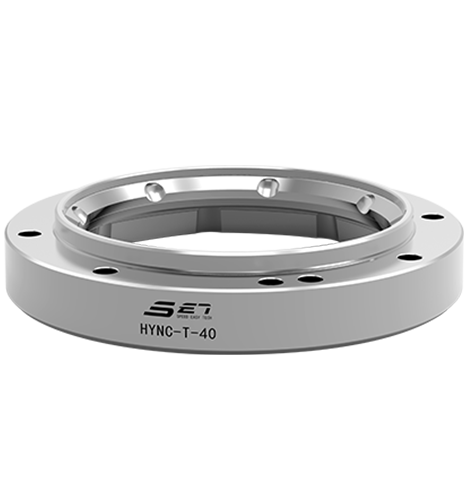

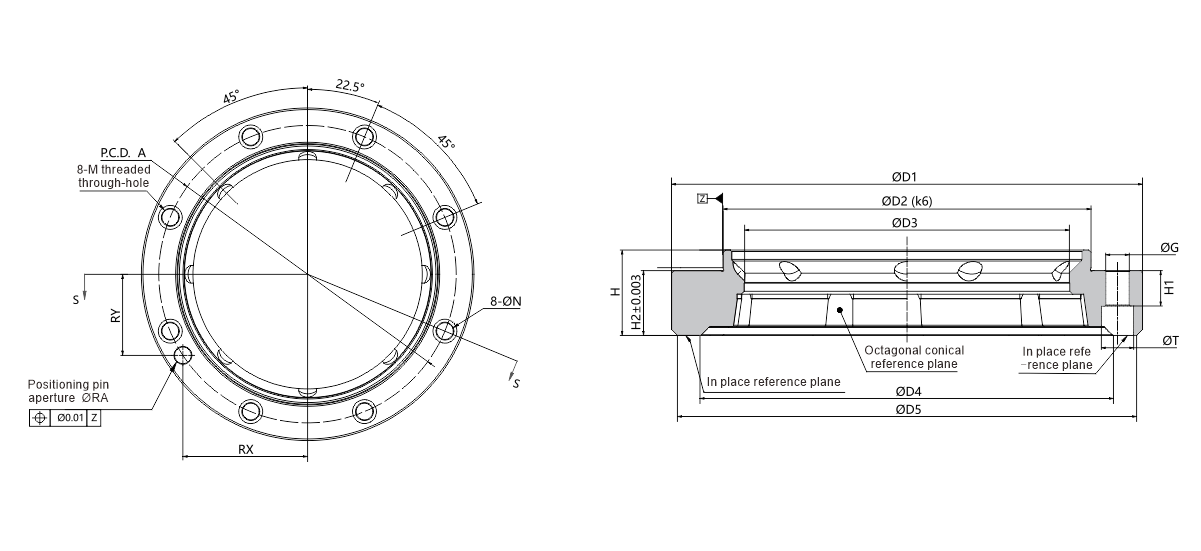

Tray adapter

Order number ØD1 ØD2 ØD3 ØD4 ØD5 H H1 H2

HQNC-T-10

HYNC-T-10

 100 82 70.3 89 97 21 7.5 15

HQNC-T-20

HYNC-T-20

 125 100 86.3 111 121 26 10 19

HQNC-T-40

HYNC-T-40

 160 125 110.3 140 156 29 12 22

HQNC-T-60

HYNC-T-60

 200 166 142.3 178 194 35 15 28

Order number A ØG ØN M ØT

ØRA

(H7)

ØRX

(±0.01)

ØRY

(±0.01)

HQNC-T-10

HYNC-T-10

 90 4.5 4.5 M5*0.8 8 5 38 25

HQNC-T-20

HYNC-T-20

 113 5.5 5.5 M6*1 9.5 6 47 31

HQNC-T-40

HYNC-T-40

 143 6.8 6.8 M8*1.25 11 8 60 39

HQNC-T-60

HYNC-T-60

 180 9 9 M10*1.5 14 10 77 49

Mounting dimension drawing

Main calmping apparatus

Order number ØD1 ØD2 A B H H1 M ØN ØU TA ØTB

ØRA

(H7)

ØRX

(±0.01)

ØRY

(±0.01)

HQNC-S-10

HYNC-S-10

 74 73.7 89 90 28 11 M5 2.5 3 R43.5 5 5 38 25

HQNC-S-20

HYNC-S-20

 89 88.7 110 115 30 11 M6 2.5 3 R55 5 6 47 31

HQNC-S-40

HYNC-S-40

 110 109.9 140 146 32 13 M8 5 4 R67 10 8 60 39

HQNC-S-60

HYNC-S-60

 130 129.7 175 186 37 13 M10 5 4 R81.5 10 10 77 79

Tray adapter

Order number

ØDN

(H6)

 ØA B C H1 ØN

ØRA

(H7)

ØRX

(±0.01)

ØRY

(±0.01)

HQNC-T-10

HYNC-T-10

 82 5.5 90 M4 10 50 5 38 25

HQNC-T-20

HYNC-T-20

 100 6.8 113 M5 14 65 6 47 31

HQNC-T-40

HYNC-T-40

 125 9 143 M6 17 80 8 60 39

HQNC-T-60

HYNC-T-60

 166 11 180 M8 17 120 10 77 49
Public information
SET Industrial | Zero-Point Positioning & CNC Workholding All SET Industrial | Zero-Point Positioning & CNC Workholding 3D model diagram SET Industrial | Zero-Point Positioning & CNC Workholding Installation instruction SET Industrial | Zero-Point Positioning & CNC Workholding User Manual SET Industrial | Zero-Point Positioning & CNC Workholding Sample book
SET Industrial | Zero-Point Positioning & CNC Workholding List Type Latest updates
  • Q1. What is a short-cone ball lock zero-point positioning system?

    A short-cone ball lock zero-point positioning system uses a short-cone locating interface combined with a ball-lock clamping mechanism to position and secure compatible fixtures or pallets. The system is designed for repeatable CNC workholding and quick fixture changeover.

  • Q2. How does the short-cone ball lock mechanism work?

    The short-cone locating interface establishes the positioning reference between the zero-point receiver and the compatible fixture or pallet. The ball-lock mechanism secures the interface, while the pneumatic system can be used to release the clamping mechanism during fixture changeover.

  • Q3. Is the short-cone zero-point system suitable for 5-axis machining?

    Yes. The compact locating interface and repeatable positioning concept make the system suitable for selected 5-axis machining and multi-axis workholding applications. The final configuration should be selected according to the machine, fixture geometry and machining requirements.

  • Q4. Is this zero-point system pneumatic?

    This configuration uses pneumatic actuation for releasing the clamping mechanism. The exact operating pressure, clamping force and installation requirements depend on the selected model and technical specification.

  • Q5. What is the positioning repeatability?

    The applicable SET configuration can provide repeatability up to 0.005 mm. Actual performance depends on the product model, installation accuracy, locating interface, fixture condition and machining environment. Please refer to the specific product drawing for the exact specification.

  • Q6. Can the system be used with custom fixtures?

    Yes. The zero-point interface can be integrated with compatible custom fixtures, pallets and workholding plates. Fixture dimensions, locating interface, pull studs and clamping requirements should be confirmed before production.

  • Q7. Can the zero-point system be used for automated fixture changeover?

    Yes. The pneumatic configuration can be integrated into automated fixture and pallet changeover systems. Additional sensors, air connections, robotic interfaces or control components may be required depending on the automation design.

  • Q8. How do I select the correct short-cone zero-point system?

    Selection depends on the required positioning accuracy, clamping force, fixture size, workpiece weight, machine-table configuration, installation method and automation requirements. SET can recommend a suitable configuration after reviewing the machine and fixture information.

  • Q1. Are you a zero-point positioning system manufacturer?

    Yes. SET is a manufacturer specializing in zero-point positioning systems, zero-point clamping systems, gripping systems, clamping systems and customized tooling solutions for CNC machining and industrial automation.

  • Q2. Can SET provide customized zero-point workholding solutions?

    Yes. SET provides customized zero-point positioning and workholding solutions according to machine-table dimensions, fixture requirements, workpiece size, positioning accuracy, clamping force and automation conditions.

  • Q3. Can you provide technical drawings and product specifications?

    Yes. Technical drawings, product specifications and configuration information can be provided for applicable products. Customers can contact SET with their machine model, fixture dimensions and application requirements to confirm the correct configuration.

  • Q4. Can SET support OEM or customized projects?

    SET can support customized industrial workholding and tooling projects. OEM or non-standard requirements should be evaluated according to the technical specifications, application conditions and production requirements of the project.

  • Q5. What information should I provide when requesting a quotation?

    For a zero-point positioning system quotation, provide the CNC machine type, machine-table dimensions, fixture or pallet dimensions, workpiece weight, required positioning repeatability, clamping requirements, pneumatic conditions and automation requirements. Drawings or photos are also helpful for technical evaluation.
