Coupling

  • Repeated positioning accuracy <0.02mm
  • Clamping force 4kN
  • With loosen, clamp detection interface
  • Pallet adapter is in place to detect the interface
  • Coupling
  • Coupling
  • Coupling
  • Coupling

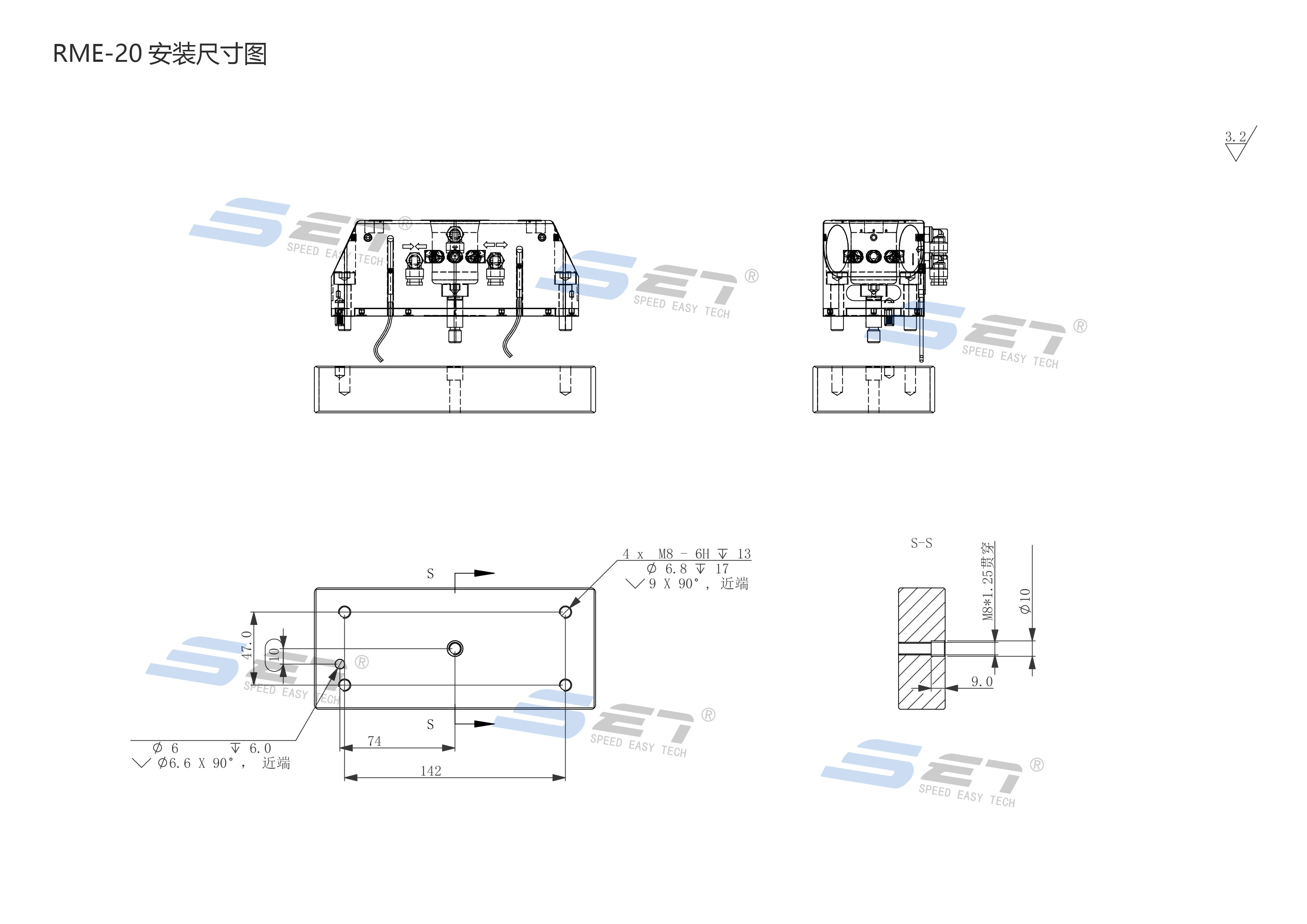

Detail drawing
  • Coupling
  • Coupling
  • Coupling
  • Coupling
Contact us
SET Industrial | Zero-Point Positioning & CNC Workholding Product parameters SET Industrial | Zero-Point Positioning & CNC Workholding Drawing SET Industrial | Zero-Point Positioning & CNC Workholding Data download SET Industrial | Zero-Point Positioning & CNC Workholding Related accessories SET Industrial | Zero-Point Positioning & CNC Workholding Product Technical FAQs SET Industrial | Zero-Point Positioning & CNC WorkholdingSourcing & Ordering FAQs

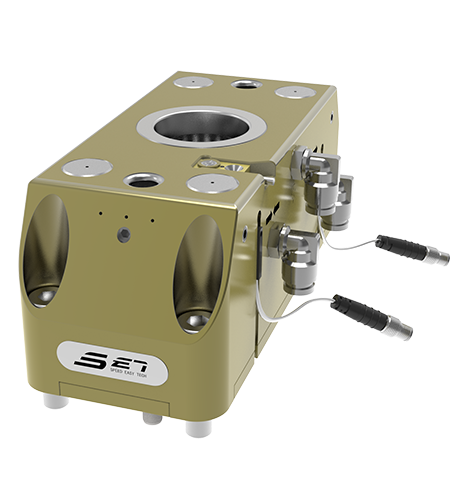

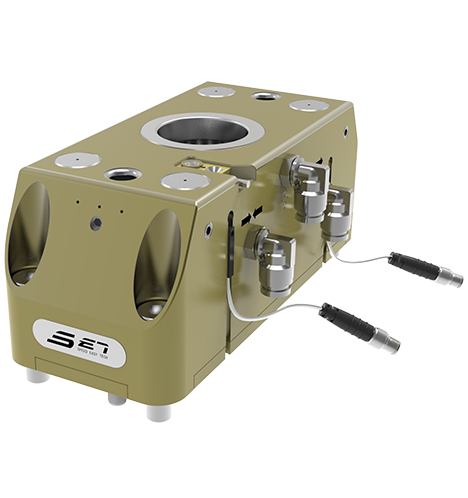

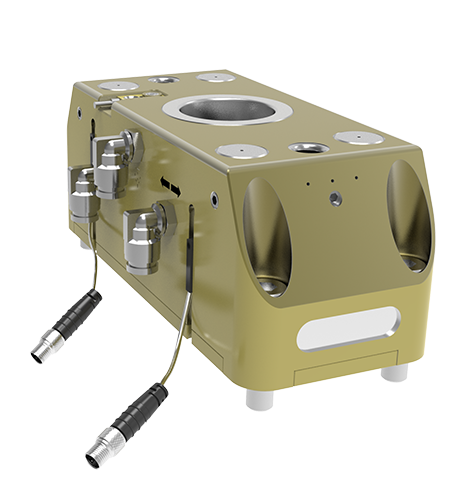

Product Overview

The coupling is unlocked by air pressure, mechanically clamped and locked in the form of a self-locking function.
Hardened stainless steel + alumina material, weight 1.6kg, unlocking pressure of 0.6MPa.
Repeated positioning accuracy <0.02mm, clamping force 4kN, with loosen, clamping detection interface, tray adapter in place detection interface.
It is suitable for automatic multi-axis robot handling.

Coupling
Product Features

  • Pneumatic unlocking, mechanical clamping, form-locking with self-locking function;

  • Material: Hardened stainless steel + alumina;

  • High clamping force and locking force;

  • A pallet adapter is in place to detect the interface.

SET Industrial | Zero-Point Positioning & CNC Workholding

  • Unlocking pressure: 0.6MPa;

  • Repeated positioning accuracy <0.02mm;

  • With loosen, clamp detection interface;

Product dimension diagram

Dimension number Unlocking method Unlocking method Clamping force(kN) Maximum torque(Nm)(x) Maximum torque(Nm)(z) Weight(kg)
RME-20 R20 Atmospheric pressure 4  600  1600  1.6

Dimension number A B DN D1 D2 D3 D4 H H1 H2 H3   H4 K M1 M2 N
R20 125 52 159  142  104 96 32 62 26 47 65   13.5  32 M8 M8 10
  • SET Industrial | Zero-Point Positioning & CNC Workholding
  • SET Industrial | Zero-Point Positioning & CNC Workholding

Coupling

  1. The coupling is unlocked by air pressure, mechanically clamped and locked in the form of a self-locking function.
  2. Hardened stainless steel + alumina material, weight 1.6kg, unlocking pressure of 0.6MPa.
  3. Repeated positioning accuracy <0.02mm, clamping force 4kN, with loosen, clamping detection interface, tray adapter in place detection interface.
  4. It is suitable for automatic multi-axis robot handling.
Public information
SET Industrial | Zero-Point Positioning & CNC Workholding All SET Industrial | Zero-Point Positioning & CNC Workholding 3D model diagram SET Industrial | Zero-Point Positioning & CNC Workholding Installation instruction SET Industrial | Zero-Point Positioning & CNC Workholding User Manual SET Industrial | Zero-Point Positioning & CNC Workholding Sample book
SET Industrial | Zero-Point Positioning & CNC Workholding List Type Latest updates
  • Q1. What is a short-cone ball lock zero-point positioning system?

    A short-cone ball lock zero-point positioning system uses a short-cone locating interface combined with a ball-lock clamping mechanism to position and secure compatible fixtures or pallets. The system is designed for repeatable CNC workholding and quick fixture changeover.

  • Q2. How does the short-cone ball lock mechanism work?

    The short-cone locating interface establishes the positioning reference between the zero-point receiver and the compatible fixture or pallet. The ball-lock mechanism secures the interface, while the pneumatic system can be used to release the clamping mechanism during fixture changeover.

  • Q3. Is the short-cone zero-point system suitable for 5-axis machining?

    Yes. The compact locating interface and repeatable positioning concept make the system suitable for selected 5-axis machining and multi-axis workholding applications. The final configuration should be selected according to the machine, fixture geometry and machining requirements.

  • Q4. Is this zero-point system pneumatic?

    This configuration uses pneumatic actuation for releasing the clamping mechanism. The exact operating pressure, clamping force and installation requirements depend on the selected model and technical specification.

  • Q5. What is the positioning repeatability?

    The applicable SET configuration can provide repeatability up to 0.005 mm. Actual performance depends on the product model, installation accuracy, locating interface, fixture condition and machining environment. Please refer to the specific product drawing for the exact specification.

  • Q6. Can the system be used with custom fixtures?

    Yes. The zero-point interface can be integrated with compatible custom fixtures, pallets and workholding plates. Fixture dimensions, locating interface, pull studs and clamping requirements should be confirmed before production.

  • Q7. Can the zero-point system be used for automated fixture changeover?

    Yes. The pneumatic configuration can be integrated into automated fixture and pallet changeover systems. Additional sensors, air connections, robotic interfaces or control components may be required depending on the automation design.

  • Q8. How do I select the correct short-cone zero-point system?

    Selection depends on the required positioning accuracy, clamping force, fixture size, workpiece weight, machine-table configuration, installation method and automation requirements. SET can recommend a suitable configuration after reviewing the machine and fixture information.

  • Q1. Are you a zero-point positioning system manufacturer?

    Yes. SET is a manufacturer specializing in zero-point positioning systems, zero-point clamping systems, gripping systems, clamping systems and customized tooling solutions for CNC machining and industrial automation.

  • Q2. Can SET provide customized zero-point workholding solutions?

    Yes. SET provides customized zero-point positioning and workholding solutions according to machine-table dimensions, fixture requirements, workpiece size, positioning accuracy, clamping force and automation conditions.

  • Q3. Can you provide technical drawings and product specifications?

    Yes. Technical drawings, product specifications and configuration information can be provided for applicable products. Customers can contact SET with their machine model, fixture dimensions and application requirements to confirm the correct configuration.

  • Q4. Can SET support OEM or customized projects?

    SET can support customized industrial workholding and tooling projects. OEM or non-standard requirements should be evaluated according to the technical specifications, application conditions and production requirements of the project.

  • Q5. What information should I provide when requesting a quotation?

    For a zero-point positioning system quotation, provide the CNC machine type, machine-table dimensions, fixture or pallet dimensions, workpiece weight, required positioning repeatability, clamping requirements, pneumatic conditions and automation requirements. Drawings or photos are also helpful for technical evaluation.
