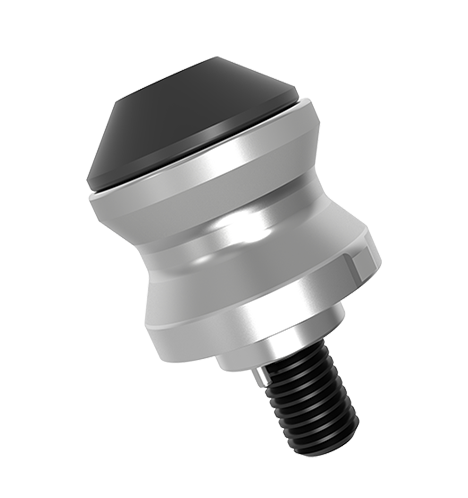

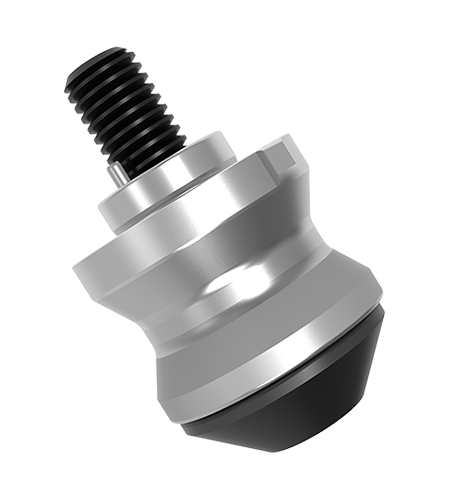

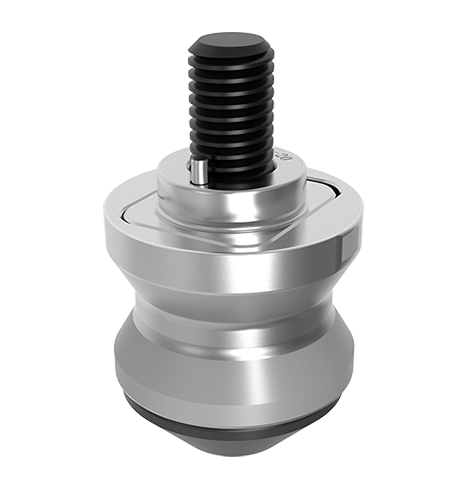

Directional Floating Puller

  • Limit the freedom of rotation direction
  • Suitable for straight column ball lock zero positioner
  • Directional Floating Puller
  • Directional Floating Puller
  • Directional Floating Puller
  • Directional Floating Puller
Detail drawing
  • Directional Floating Puller
  • Directional Floating Puller
  • Directional Floating Puller
  • Directional Floating Puller
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

Directional floating nail, hardening treatment.
Diameter 32mm, weight 154g.
Play a role in limiting the freedom of rotation direction.
Suitable for straight column ball lock zero positioner.

Directional Floating Puller
Product Features

  • High precision, hardening treatment;

  • Suitable for straight column ball lock zero positioner.

Zero Point Clamping System

  • Play a role in limiting the freedom of rotation direction

Product dimension diagram

Order number ØDN

Ø DN1

(h7)

H

H1

H2

 H3 H4 ØR M G SW Floating quantity
（mm）		 Weight(g)
FDJT-X-20 32 18 32.05 22.85 20.25 5 3 2 M10 7 SW10 ±0.5 154
