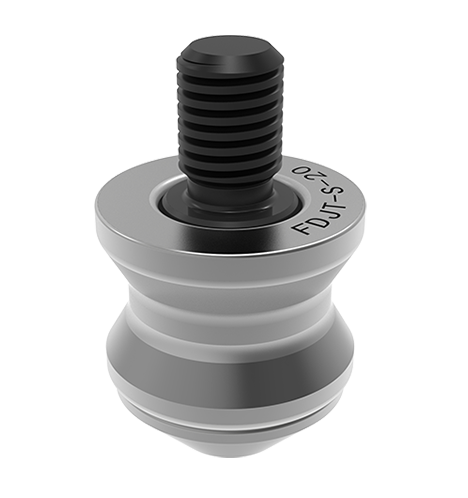

Lock The Floating Puller

  • Increase tension
  • Limit the degree of freedom of rotation and play a directional role
  • Suitable for straight column ball lock zero positioner
  • Lock The Floating Puller
  • Lock The Floating Puller
  • Lock The Floating Puller

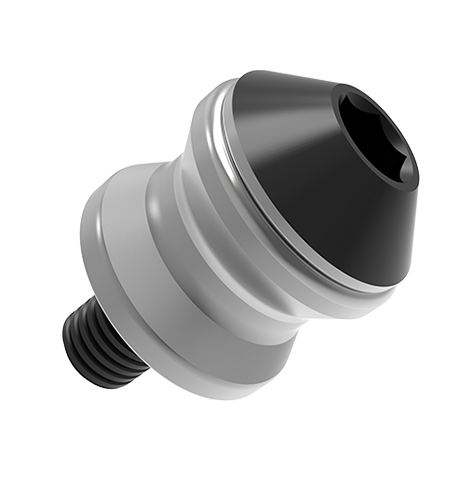

Detail drawing
  • Lock The Floating Puller
  • Lock The Floating Puller
  • Lock The Floating Puller
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

Lock the floating nail and harden it.
Diameter 32mm, height 32.05mm (excluding mounting thread), weight 152g.
The nail not only plays a role in increasing the tension force, but also limits the degree of freedom of rotation and plays a directional role.
Suitable for straight column ball lock zero positioner.

Lock The Floating Puller
Product Features

  • Hardening treatment;

  • Only increase the tension effect;

Zero Point Clamping System

  • Only limit the freedom of rotation, play a directional role;

  • Suitable for straight column ball lock zero positioner.

Product dimension diagram

Order number ØDN M

T+0.1

0

 H H1 H2 SW Floating quantity
（mm）		 Weight(g)
FDJT-S-20 31.8 M12 0.025 32.05 22.85 18.25 SW10 ±0.5 152
