Product parameters

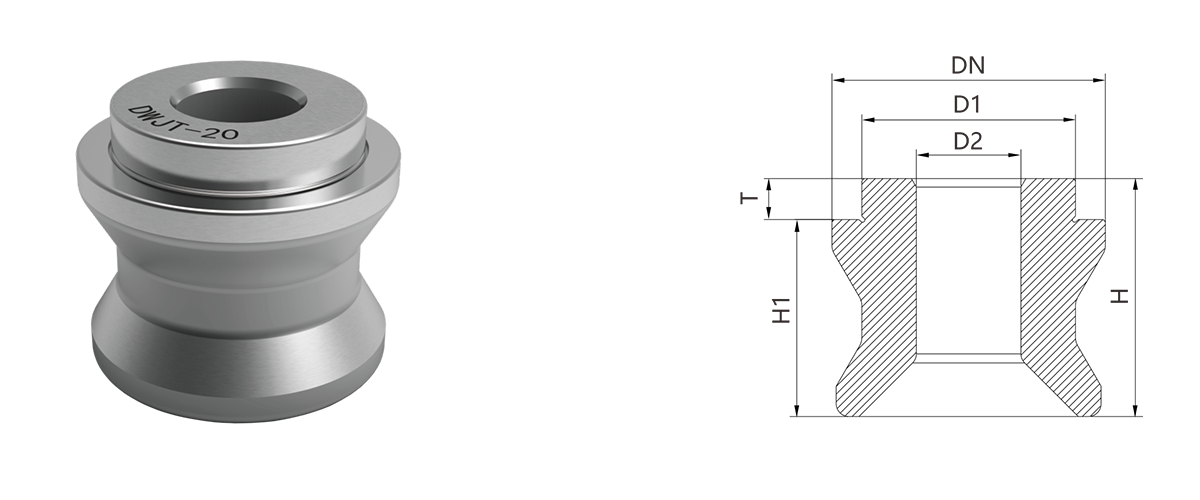

Drawing
Data download
Related accessories

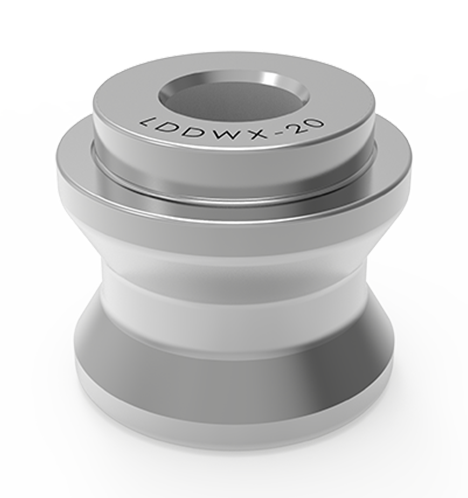

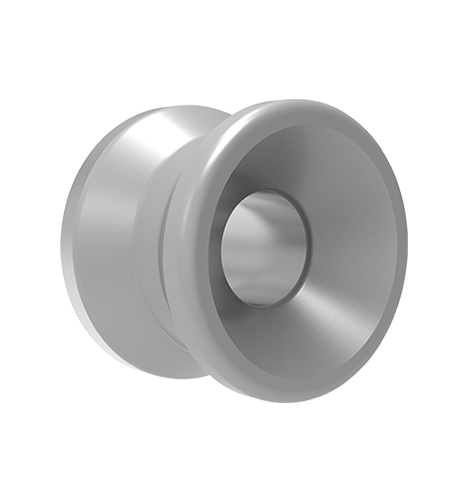

Positioning pin, hardening treatment.
28mm high, 105g weight.
To limit the X-axis, and Y-axis direction of freedom function.
Suitable for straight column ball lock zero locator.
High precision, hardening treatment;
Suitable for straight column ball lock zero locator.
Play a role in restricting the freedom of X and Y directions;
| Order number |
ØDN |
ØD1 (-0.002/-0.01) |
ØD2 | H | H1 | T | Weight(g) |
|---|---|---|---|---|---|---|---|
| DWJT-2 | 13 | 10 | 6.2 | 11 | 8.9 | 2.1 | 6 |
| DWJT-5 | 18 | 14 | 8.2 | 15.5 | 12.8 | 2.7 | 16 |
| DWJT-10 | 22 | 15 | 8.3 | 19.3 | 16.3 | 3 | 30 |
| DWJT-20 | 32 | 25 | 12.2 | 28 | 23 | 5 | 105 |
| DWJT-40 | 40 | 30 | 16.3 | 34 | 29 | 5 | 188 |
If you are interested in our products, please consult us
