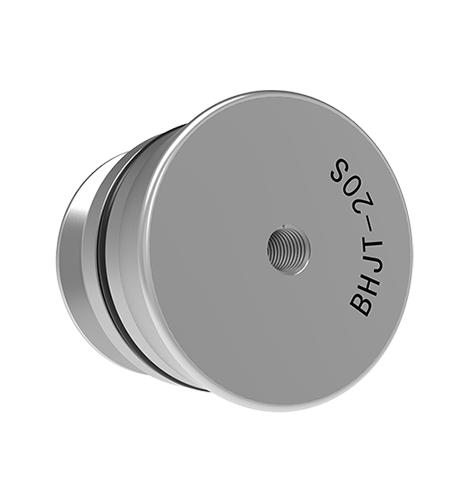

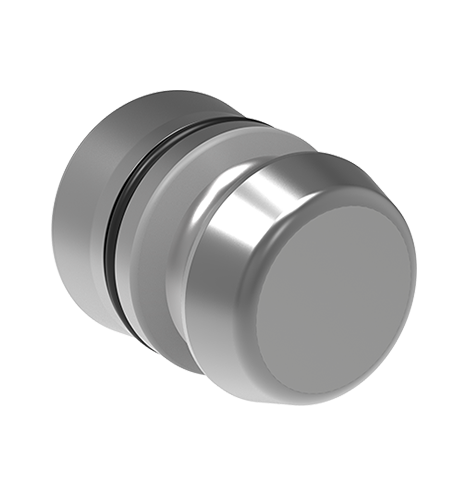

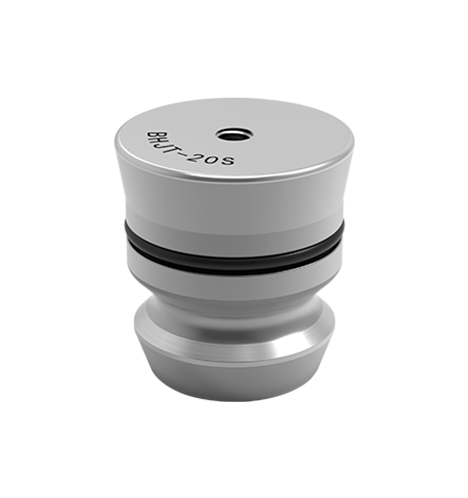

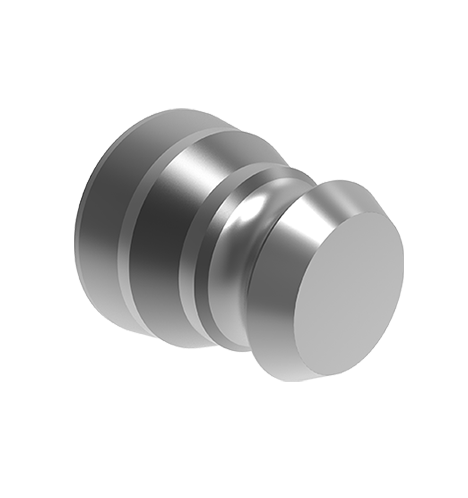

Protective Plug (Q10S/Q40S)

  • Diameter 45mm, height 31mm, weight 31g
  • Q10S, Q40S zero positioner special
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
Detail drawing
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
  • Protective Plug (Q10S/Q40S)
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

Protective plug, aluminum.
Diameter 45mm, height 31mm, weight 31g.
Prevents debris from entering the non-working zero position unit.
Suitable for short cone ball lock type Q10S, Q40S zero positioner.

Protective Plug (Q10S/Q40S)
Product Features

  • Material: Aluminum;

  • Suitable for short cone ball lock type Q10S/Q40S zero positioner.

Zero Point Clamping System

  • Prevent debris from entering the non-working zero location unit;

Product dimension diagram

Order number ØDN ØD1 ØD2 ØD3 H1 H2 Weight(g)
BHJT-10S 27.6 20 M12 17 10.3  5 30.5 80
BHJT-40S 41.6 30 M20 20.5 16.5  5 42 240
