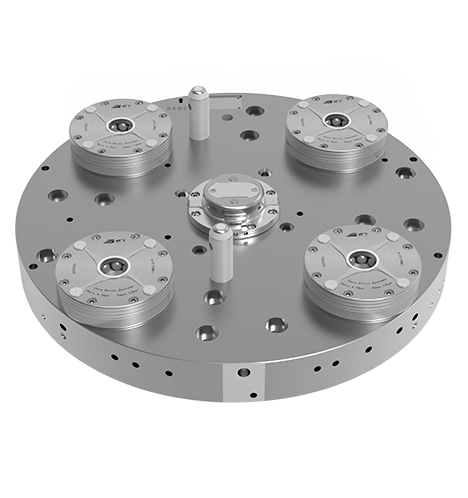

✔ The diameter of the 550mm foundation plate is 550mm, the plate thickness is 97mm (excluding guide columns), the weight is 160.5kg, and it is made of stainless steel material.
✔ The repeated positioning accuracy is less than 0.01mm, and the clamping force of a single 550mm foundation plate is 78kN, with a tightening force of 245kN.
✔ Equipped with in place detection and relaxation detection functions.
✔ This basic version comes standard with the LQNCZ-20-K locator.
✔ Can be customized according to needs, suitable for four axis, lathe, machine tool processing, metal or non-metal cutting fields.
Air pressure unlocking, mechanical locking;
Repetitive positioning accuracy<0.003mm;
Suitable for metal or non-metal cutting fields;
Material: stainless steel;
Special requirements can be customized by contacting us;
Suitable for five axis, sleeper, and machine tool machining.
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q4GWYB-550 | Atmospheric pressure | 4×17 | 4×55 | √ | 115 |
| Dimension number | ØA | ØB(±0.01) | ØC | ØD | E | F | G | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| Q4GWYB-550 | 334 | 410 | 456 | 550 | 430 | 80 | 230 | 63 | 35 |
