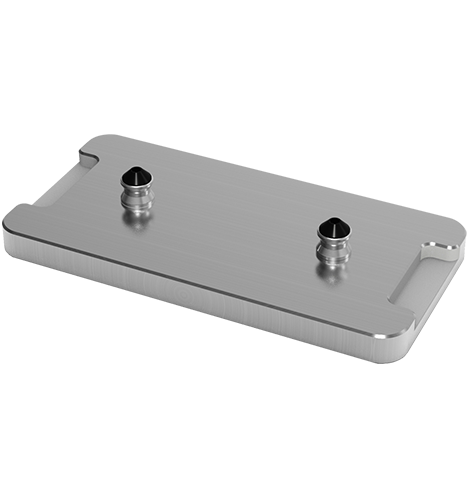

Two-Unit Pallet

  • Customizable
  • Suitable for two unit zero positioner base plate
  • Two-Unit Pallet
  • Two-Unit Pallet
Detail drawing
  • Two-Unit Pallet
  • Two-Unit Pallet
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

The two unit trays are 200mm long, 100mm wide and 20mm thick.
Suitable for two unit zero positioner base plate.
Die steel material, can also be customized according to demand.

Two-Unit Pallet
Product Features

  • Material: Die steel (or customer's choice);

  • Special requirements can be customized by contacting us.

Zero Point Clamping System

  • Suitable for two-unit zero positioning base plate;

Product dimension diagram

Order number A B SM T

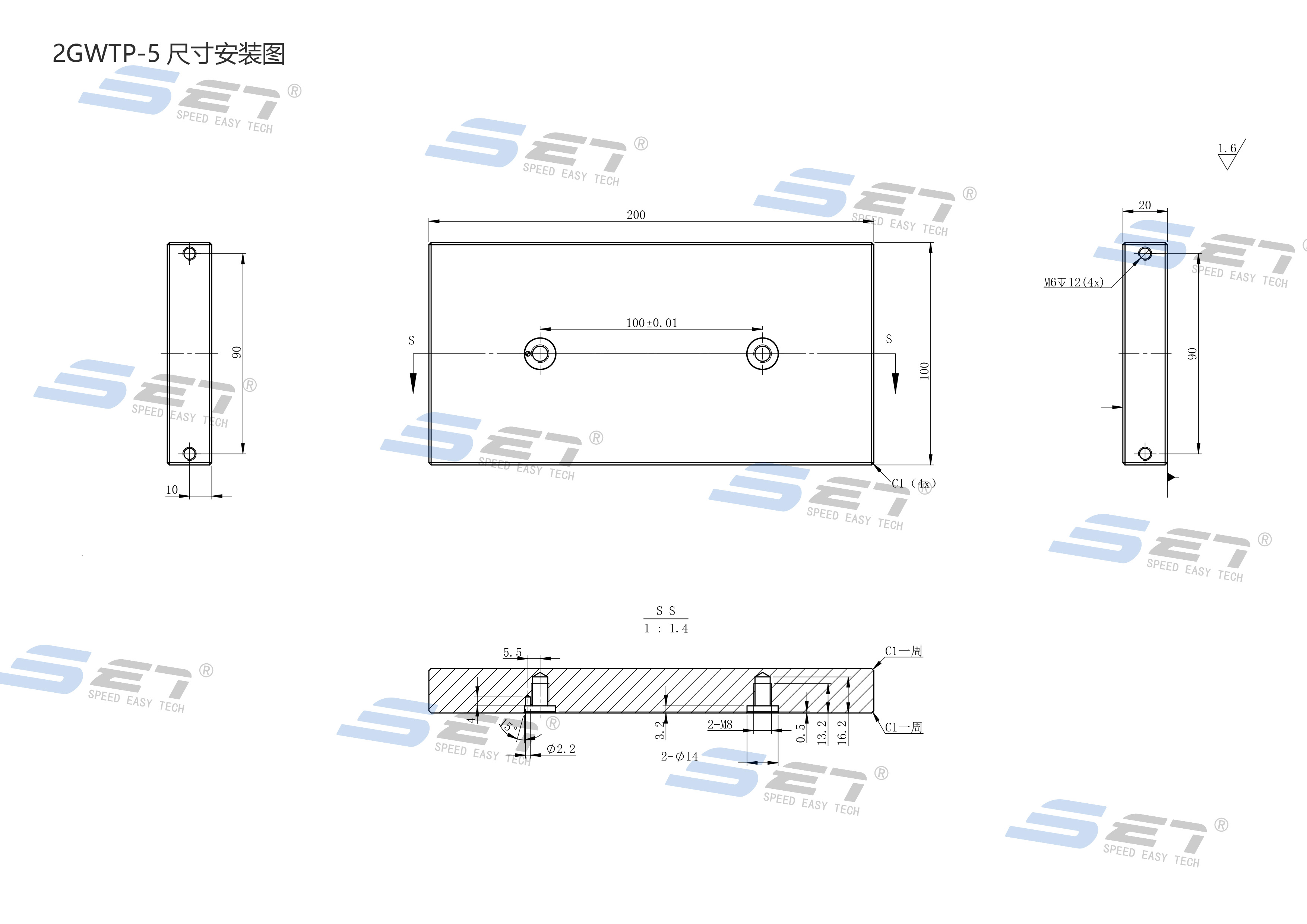

2GWTP-5 200  100  100  20

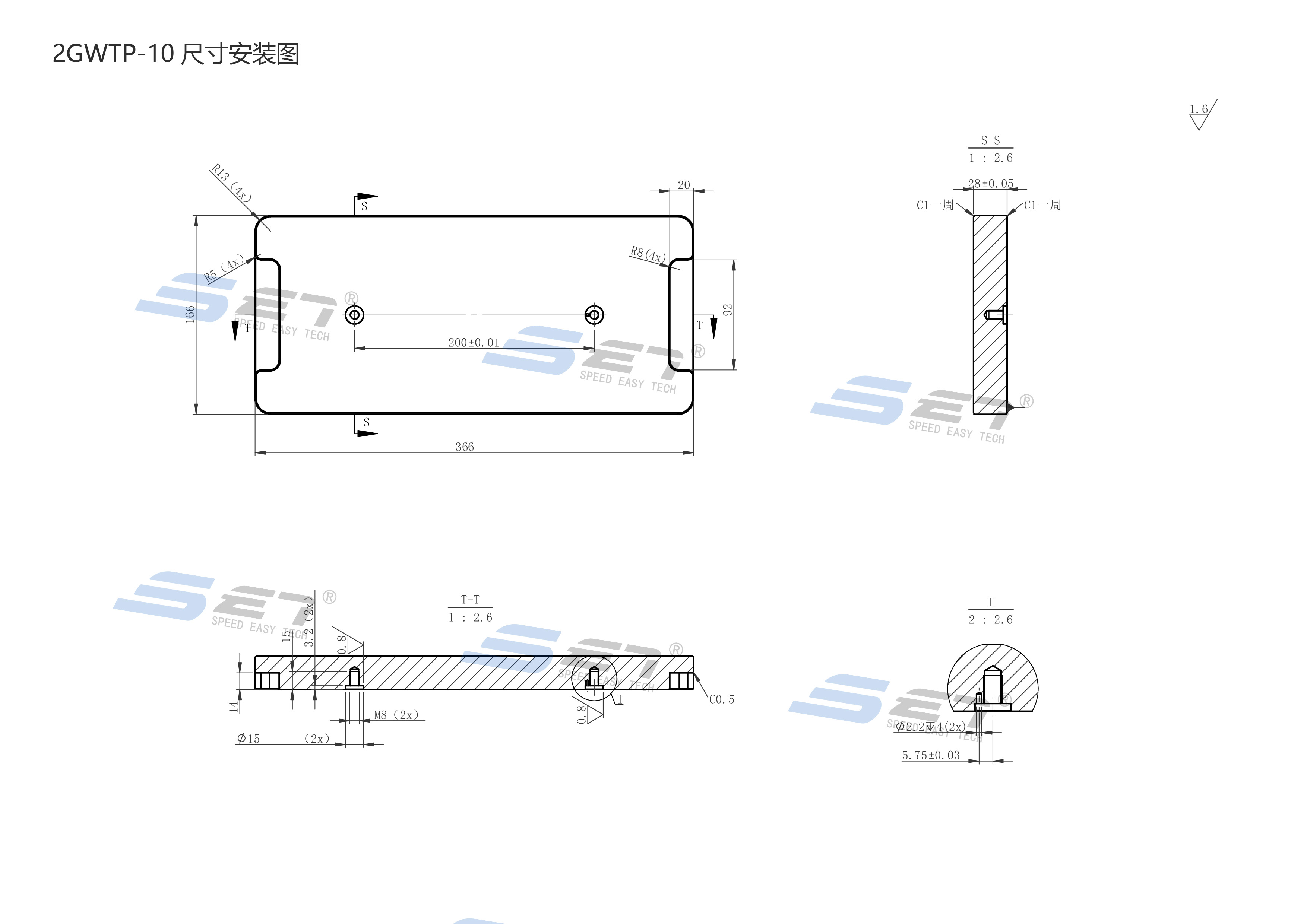

2GWTP-10 366  166  200  28

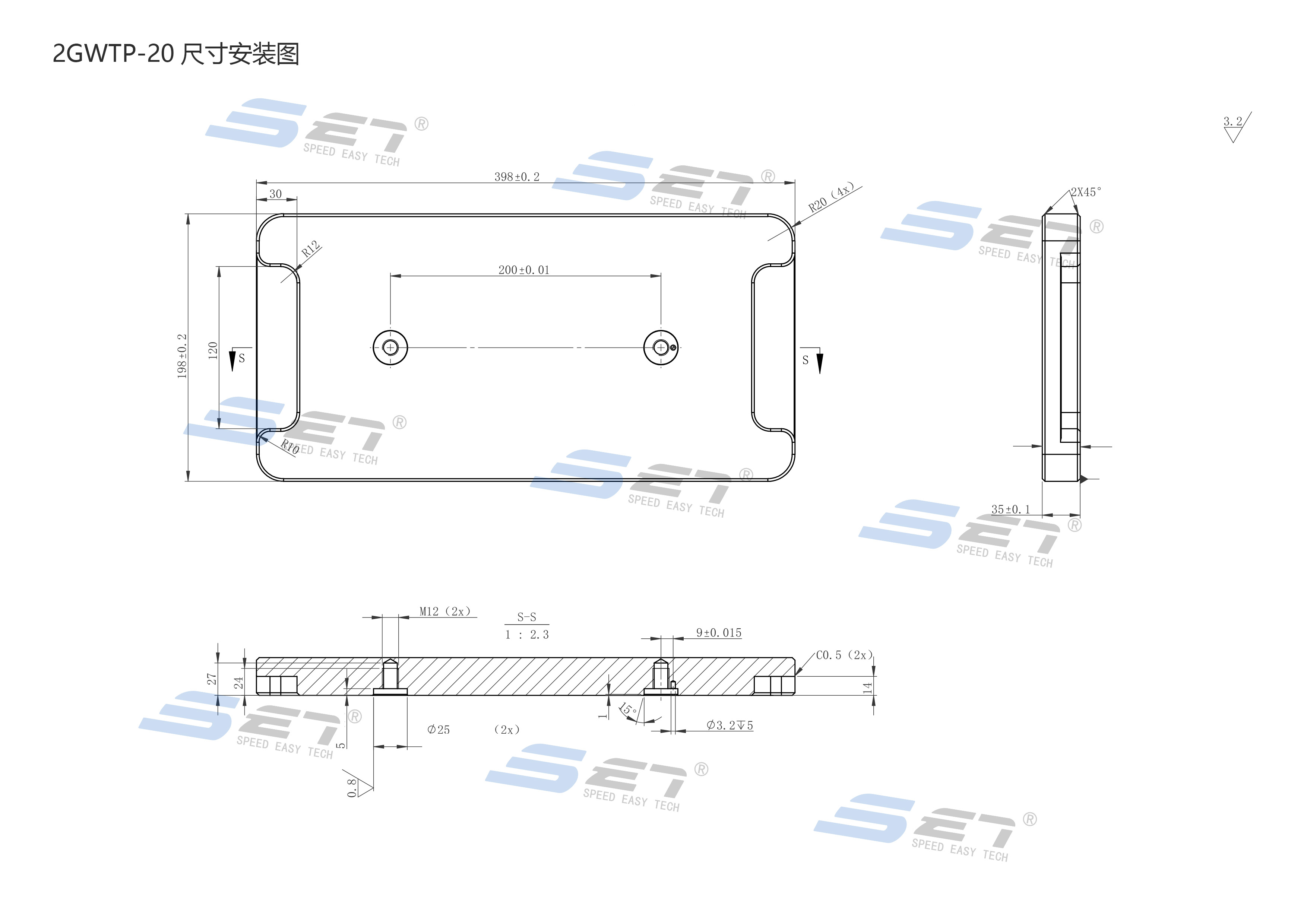

2GWTP-20 398  198  200  28
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System

Two-Unit Pallet

  1. The two unit trays are 200mm long, 100mm wide and 20mm thick
  2. Suitable for two unit zero positioner base plate
  3. Die steel material, can also be customized according to demand
