● Repetitive positioning accuracy<0.005mm；
● Clamping force 119kN, tightening force 385kN；
● Equipped with in place detection and relaxation detection functions.
Product parameters
Drawing
Data download
Related accessories

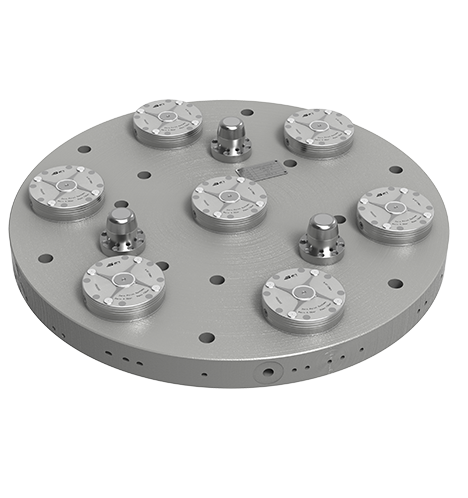

✔ 800mm foundation plate directly with a diameter of 800mm, plate thickness of 100mm (excluding guide columns), weight of 261kg, made of stainless steel material;
✔ Repetitive positioning accuracy<0.01mm, single 800mm foundation plate;
✔ This basic version comes standard with the LQNCZ-20-K locator;
✔ Can be customized according to needs, suitable for five axis, lathe, machine tool processing, metal or non-metal cutting fields.
Air pressure unlocking, mechanical locking;
Repetitive positioning accuracy<0.003mm;
Suitable for metal or non-metal cutting fields;
Material: stainless steel;
Special requirements can be customized by contacting us;
Suitable for five axis, sleeper, and machine tool machining.
| Order number | Unlocking method |
Clamping force(kN) |
Tension force(kN) |
Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q7GWYB-800 | Atmospheric pressure | 7×17 | 7×55 | √ | 261 |
| Q9GWYB-1000 | Atmospheric pressure | 9×17 | 9×55 | √ | 514 |
| Dimension number | ØA | ØB(±0.02) | ØC | ØD | E | F | H1 | H2 |
|---|---|---|---|---|---|---|---|---|
| Q7GWYB-800 | 400 | 600 | 700 | 800 | 60°(x6) | 60°(x6) | 65 | 35 |
| Q9GWYB-1000 | 500 | 750 | 850 | 1000 | 60°(x6) | 60°(x6) | 75 | 35 |
If you are interested in our products, please consult us
