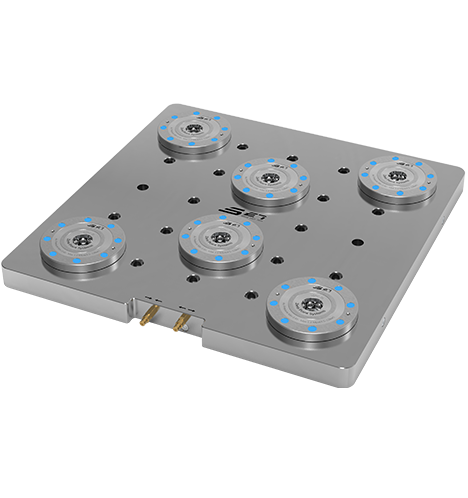

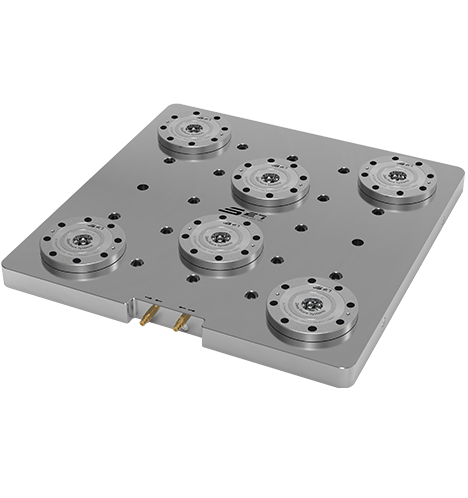

Six unit zero point locator base board

  • Repeated positioning accuracy < 0.005mm
  • Clamping force 4x5kN, tension force 4x15kN
  • Easy to install
  • Six unit zero point locator base board
  • Six unit zero point locator base board
Detail drawing
  • Six unit zero point locator base board
  • Six unit zero point locator base board
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

The two-unit zero positioner base plate is 200mm long, 200mm wide, 33.5mm high (including positioner), weighs 7.9kg, is unlocked by air pressure and mechanically locked by spring.
Repeated positioning accuracy <0.005mm, a single two-unit zero positioner base plate clamping force 4x5kN, tension force 4x15kN, the material can be customized.
It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
Suitable for metal or non-metal cutting.

Six unit zero point locator base board
Product Features

  • Pneumatic unlock, mechanical lock;

  • Surface and piston hardening treatment;

  • Through the countersunk hole on the substrate, it is locked on the T-slot, and the installation is simple;

Zero Point Clamping System

  • Material: Die steel/stainless steel (or customer's choice);

  • Repeated positioning accuracy <0.005mm;

  • At least two positioning holes for accurate positioning.

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blowing chip Weight(kg)
Q6XGWB-10 Atmospheric pressure 6×10 6×25 √ 18
Q6XGWB-20 Atmospheric pressure 6×17 6×55 √ 32

Dimension number A B C D SM1 ØE ØE1 H H1 R
Q6XGWB-10 498 350 175 498 200 20 12.5 32 10 G1/8
Q6XGWB-20 598 400 200 598 200 20 12.5 38 15 G1/4
