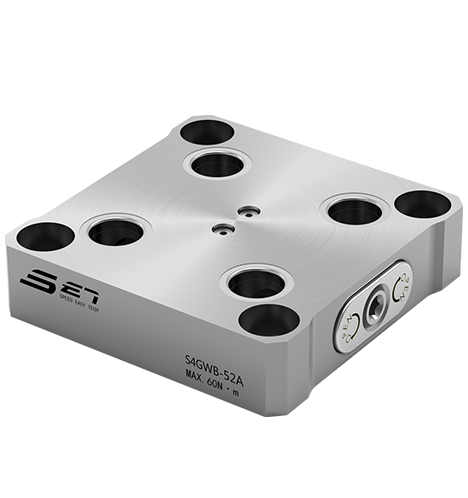

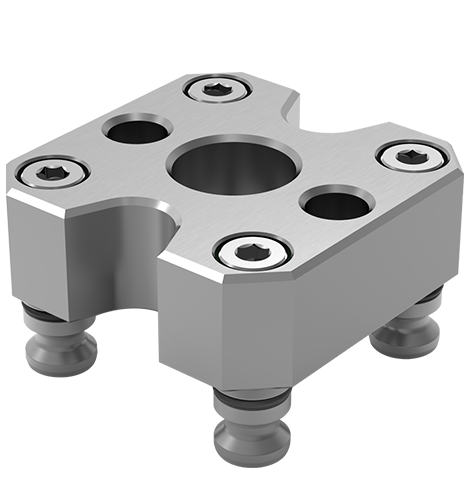

It can be clamped and unlocked manually.
Its repetitive positioning accuracy <0.01mm, clamping force is 5kN, maximum torque is 60Nm. It has hardening treatment of the surface and the plunger.
It is locked on the T-slot through the counterbore hole of the base plate. It is easy to install.
Its material can be customized. It is suitable for four-axis and five-axis CNC machine tool processing.
It can be clamped and unlocked manually；
Hardening treatment of the surface and the plunger;
Maximum torque: 60Nm;
It applies to metal or nonmetal cutting field;
Material: stainless steel (or customer's choice);
Repetitive positioning accuracy <0.01mm;
It is locked on the T-slot through the counterbore hole of the base plate. It is easy to install;
It is suitable for four-axis and five-axis CNC machine tool processing.
| Dimension number | Unlocking method | Clamping force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|
| S52A | Manual operation | 5 | × | 2.3 |

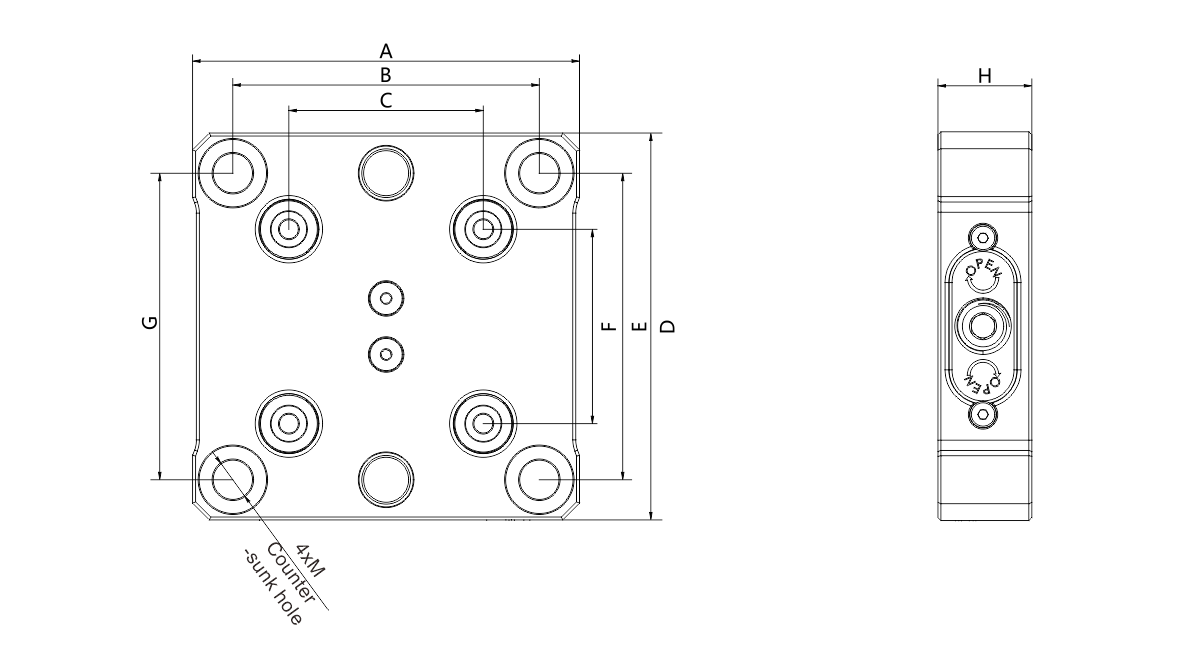

| Size number | A | B | C | D | E | F | G | M | H |
|---|---|---|---|---|---|---|---|---|---|
| S52A | 103.5 | 82 | 52 | 103.5 | 82 | 52 | 82 | M10 | 25 |
