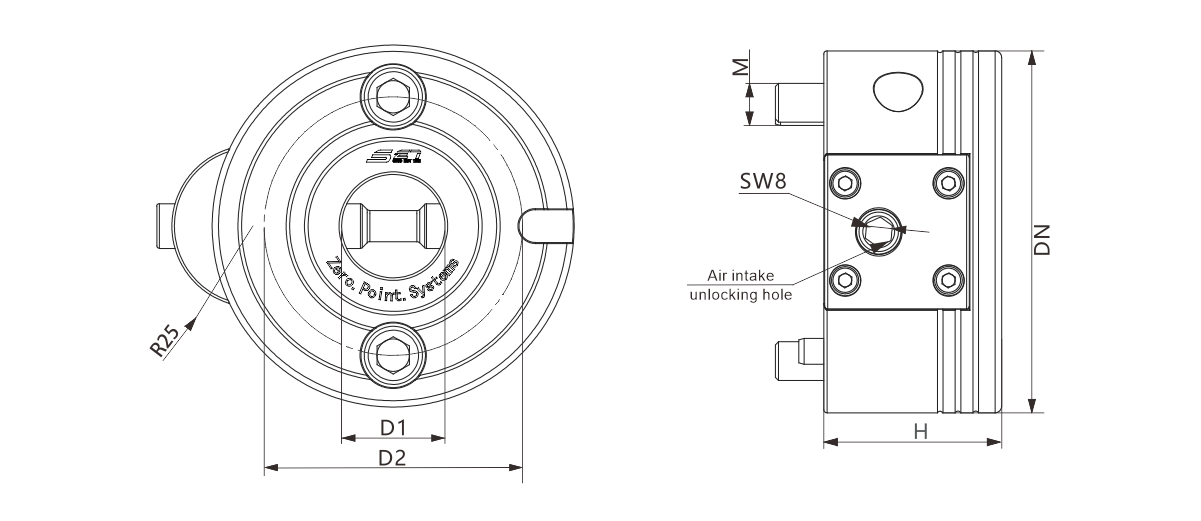

Drawing
Data download
Related accessories

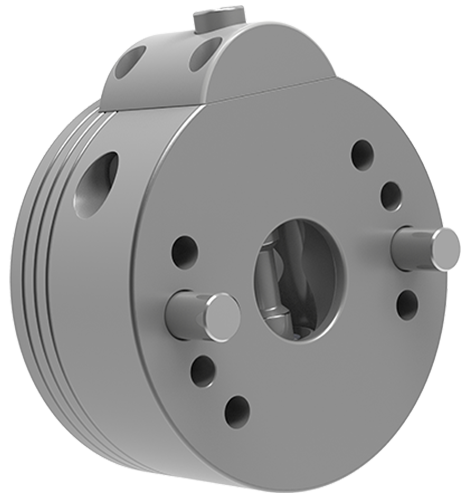

Manual Mounting Type

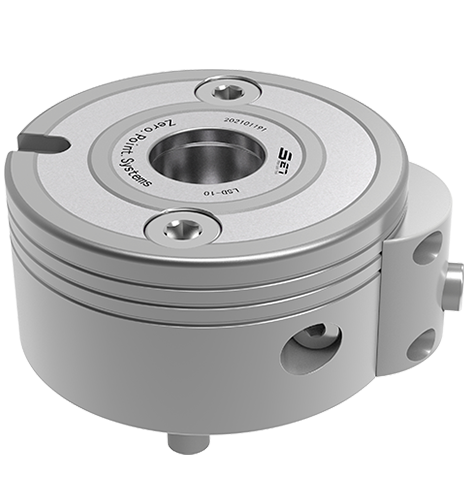

✔ Manually mounted zero locator manually clamps or relaxes.
✔ Repeated positioning accuracy ＜0.01mm, single locator
clamping force 17kN, tension force 55kN.
✔ Suitable for machining industries that need to reduce fixture
change time, metal or non-metal cutting fields.
Clamped or loosened by manual operation;
Repetitive positioning accuracy ＜0.01mm.
Material: hardened stainless steel;
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip（N·m） | Weight(kg) |
|---|---|---|---|---|---|
| LSD-10 | Manual operation | 10 | 25 | 30 | 3.3 |
| LSD-20 | Manual operation | 17 | 55 | 50 | 6.6 |
| LSD-40 | Manual operation | 40 | 105 | 70 | 9.6 |
| Order number | ØDN | ØD1 | ØD2 | H | M |
|---|---|---|---|---|---|
| LSD-10 | 112 | 32 | 80 | 55 | M12 |
| LSD-20 | 138 | 32 | 90 | 55 | M12 |
| LSD-40 | 148 | 40 | 102 | 70 | 4*M12 |
If you are interested in our products, please consult us
