Threaded Built-In Mounting Type

  • Clamping force 1.25kN
  • Tension force 5kN
  • Repeated positioning accuracy <0.005mm
  • Diameter 45mm, total thickness 20mm, weight 0.15kg
  • Threaded Built-In Mounting Type
  • Threaded Built-In Mounting Type
  • Threaded Built-In Mounting Type
Detail drawing
  • Threaded Built-In Mounting Type
  • Threaded Built-In Mounting Type
  • Threaded Built-In Mounting Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

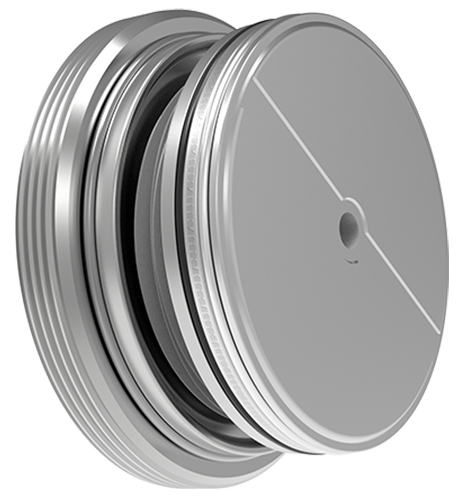

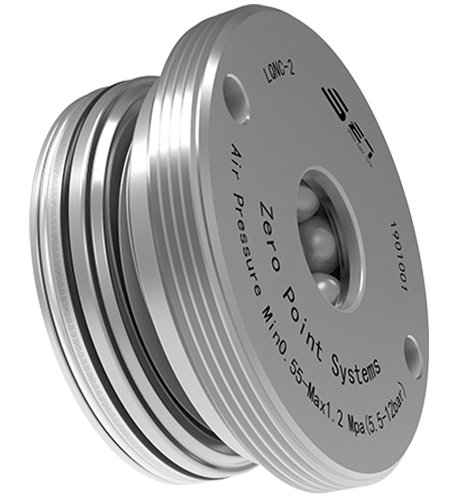

Thread built-in mounting zero positioner diameter 45mm, total thickness 20mm, weight 0.15kg, is a pressure built-in mounting type of small zero positioner, unlocked by air pressure, spring mechanical locking.
Repeated positioning accuracy <0.005mm, single positioner clamping force 1.25kN, tension force 5kN.
Different from the traditional built-in installation mode, the installation mode of this positioner is installed by screw rotation, which is more suitable for small and lightweight working conditions of tooling quick change.

Threaded Built-In Mounting Type
Product Features

  • Suitable for handling, automation industry;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Suitable for non-metal cutting fields.

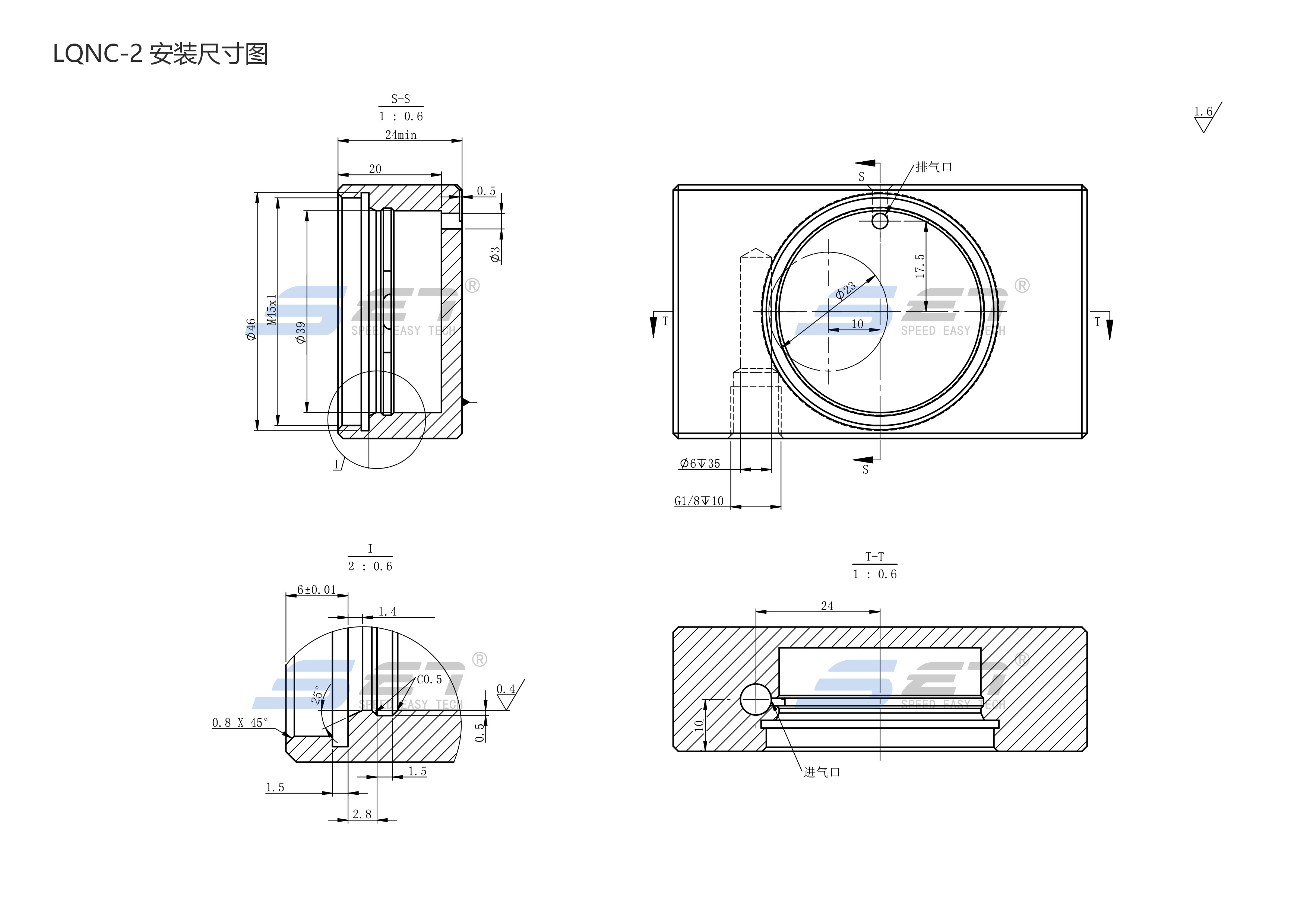

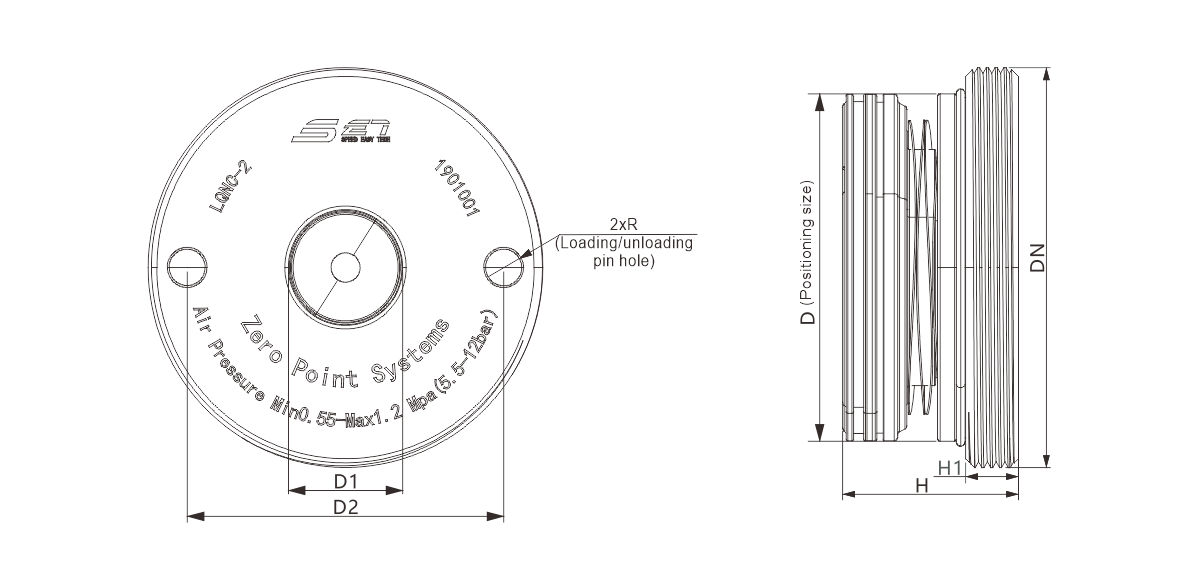

Product dimension diagram

Order number Unlocking method

Clamping force(kN)

Tension force(kN)

 Blow air

Weight(kg)

LQNC-2

 Atmospheric pressure

1.25

5

 √

0.15

Order number

DN

ØD

(h6)

 ØD1

D2

H

H1

(±0.005)

 ØDR

LQNC-2

 M45x1 39

13

36

20

6

4.1
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Threaded Built-In Mounting Type

  1. Thread built-in mounting zero positioner diameter 45mm, total thickness 20mm, weight 0.15kg, is a pressure built-in mounting type of small zero positioner, unlocked by air pressure, spring mechanical locking.
  2. Repeated positioning accuracy <0.005mm, single positioner clamping force 1.25kN, tension force 5kN.
  3. Different from the traditional built-in installation mode, the installation mode of this positioner is installed by screw rotation, which is more suitable for small and lightweight working conditions of tooling quick change.
