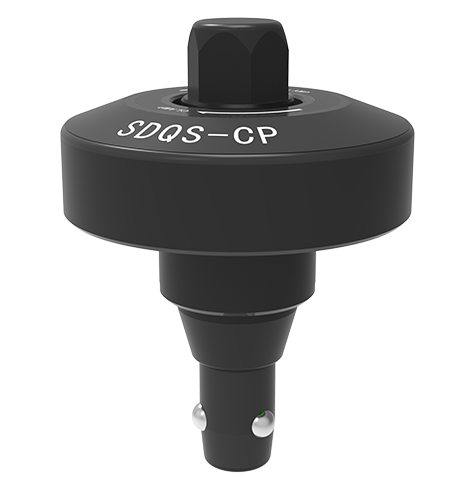

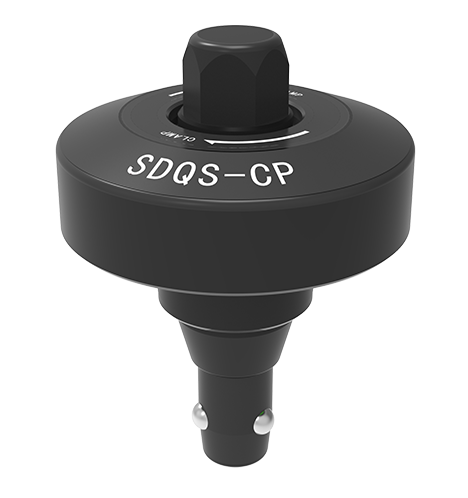

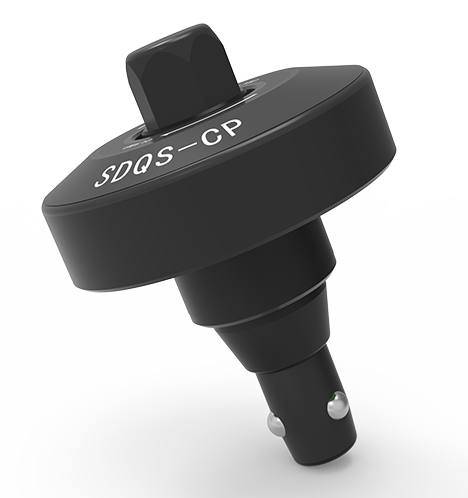

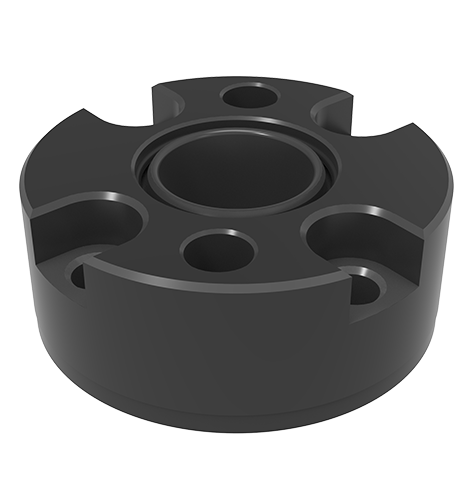

Product Overview
Its body is quenched and tempered Ferrosoferric Oxide film. The cone sleeve has salt bath soft nitriding treatment.
It can cooperate with cone pin SDQS-5-CP and protective sleeve SDQS-5-B.
Product Features
Manual clamping and unlocking;
Its surface and screw have hardening treatment.
Material: stainless steel (or customer's choice);
Product dimension diagram
| Dimension number | Matched sleeve | Clamping force (N) | Allowable fastening torque (Nm) | Unlocking method | Weight (g) |
|---|---|---|---|---|---|
| SDQS-5-CP | SDQS-5-C | 1.7 | 2 | Manual | 134 |
| SDQS-5-SP | SDQS-5-S | 133 | |||
| SDQS-10-CP | SDQS-10-C | 3 | 4 | 241 | |
| SDQS-10-SP | SDQS-10-S | 239 | |||
| SDQS-20-CP | SDQS-20-C | 4.5 | 7 | 457 | |
| SDQS-20-SP | SDQS-20-S | 453 |
| Dimension number | A | B | C | D | E | F (g6) |
G (-0.02 -0.06) |
H1 | H2 | H3 | H4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SDQS-5-CP | 10 | 30 | M4*0.7↧6 | 39 | 9 | 18 | / | 22 | 12 | 9.5 | 30 |
| SDQS-5-SP | / | 18 | |||||||||
| SDQS-10-CP | 13 | 37 | 46 | 12 | 22 | / | 27 | 14 | 14.5 | 40 | |
| SDQS-10-SP | / | 22 | |||||||||
| SDQS-20-CP | 17 | 45 | M4*0.7↧6 | 56 | 16 | 28 | / | 34 | 16 | 19.5 | 51 |
| SDQS-20-SP | / | 28 |
