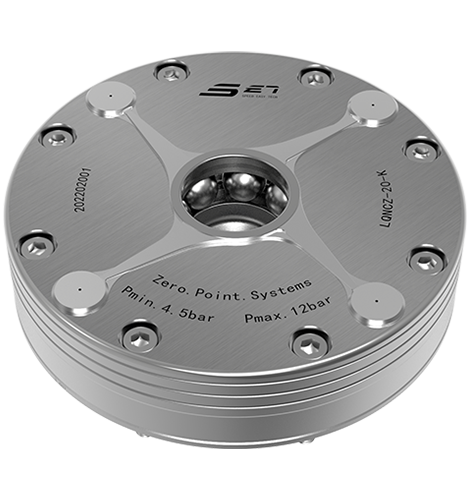

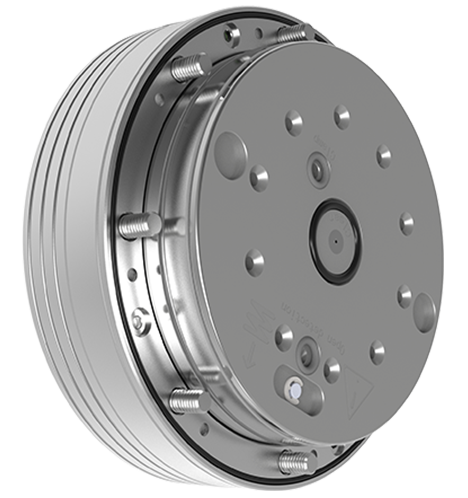

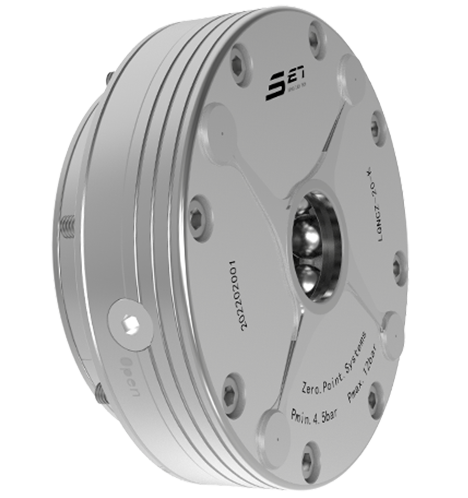

Built-in Type Automatic Zero Locator

  • Repetitive positioning accuracy ＜0.005mm
  • Full package design
  • Height adjustable
  • Includes surface blowing, cleaning function
  • Built-in Type Automatic Zero Locator
  • Built-in Type Automatic Zero Locator
  • Built-in Type Automatic Zero Locator

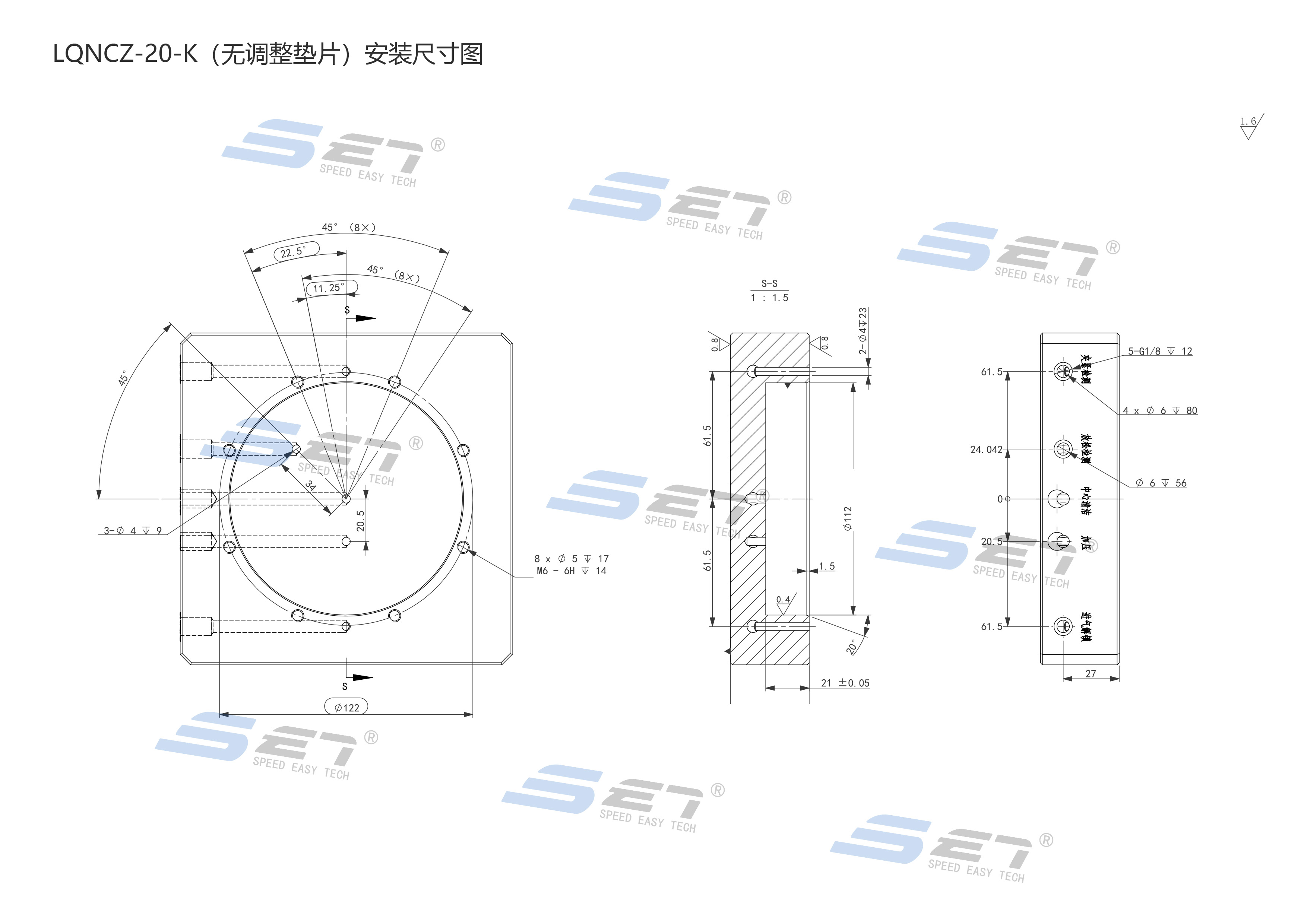

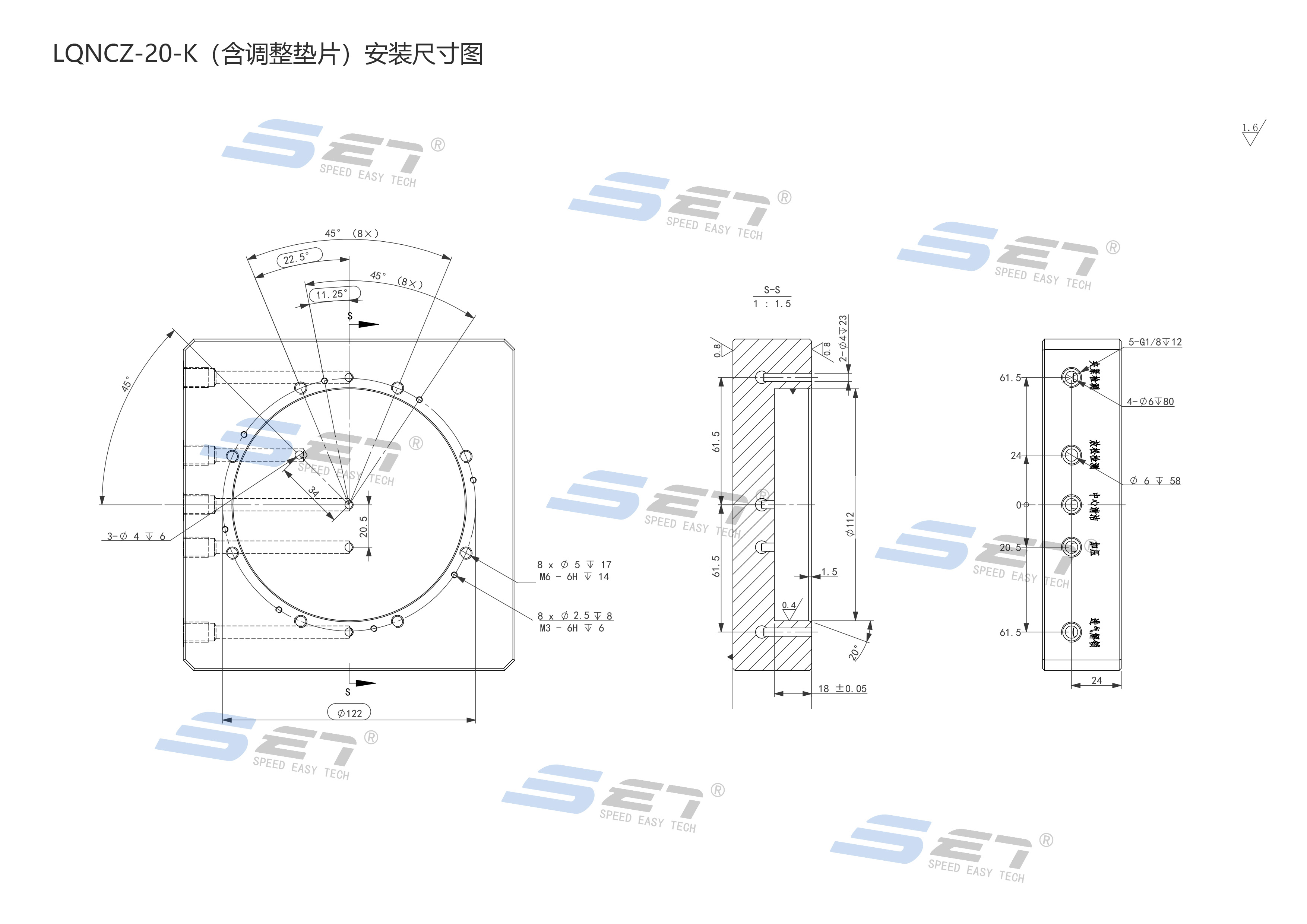

Detail drawing
  • Built-in Type Automatic Zero Locator
  • Built-in Type Automatic Zero Locator
  • Built-in Type Automatic Zero Locator
Contact us
Zero Point Clamping System Product parameters Zero Point Clamping System Drawing Zero Point Clamping System Data download Zero Point Clamping System Related accessories
Product Overview

Built-in Type Automatic Zero Locator

▶ The automatic zero locator adopts a new design structure - a fully package design, forming a fully sealed system to isolate all dirt.

▶ A gasket is added, through which the height can be precisely adjusted for more complex working conditions.

▶ Pneumatic unlock, spring mechanical lock, including surface blowing cleaning function, with clamping, unlocking air tightness detection interface, with a central blowing interface to prevent iron filings from entering.

▶ Repeated positioning accuracy ＜0.005mm, single positioner clamping force 17kN, tension force 55kN.

▶ Suitable for the automation industry.

Built-in Type Automatic Zero Locator
Product Features

  • Pneumatic unlocking and spring mechanical locking;

  • Material: hardened stainless steel;

  • Surface blowing cleaning function;

  • Contains a central blowing interface to prevent iron filings from entering;

Zero Point Clamping System

  • Repetitive positioning accuracy <0.005mm;

  • High tension and clamping force;

  • With airtight in place relaxation detection interface;

  • Full package design.

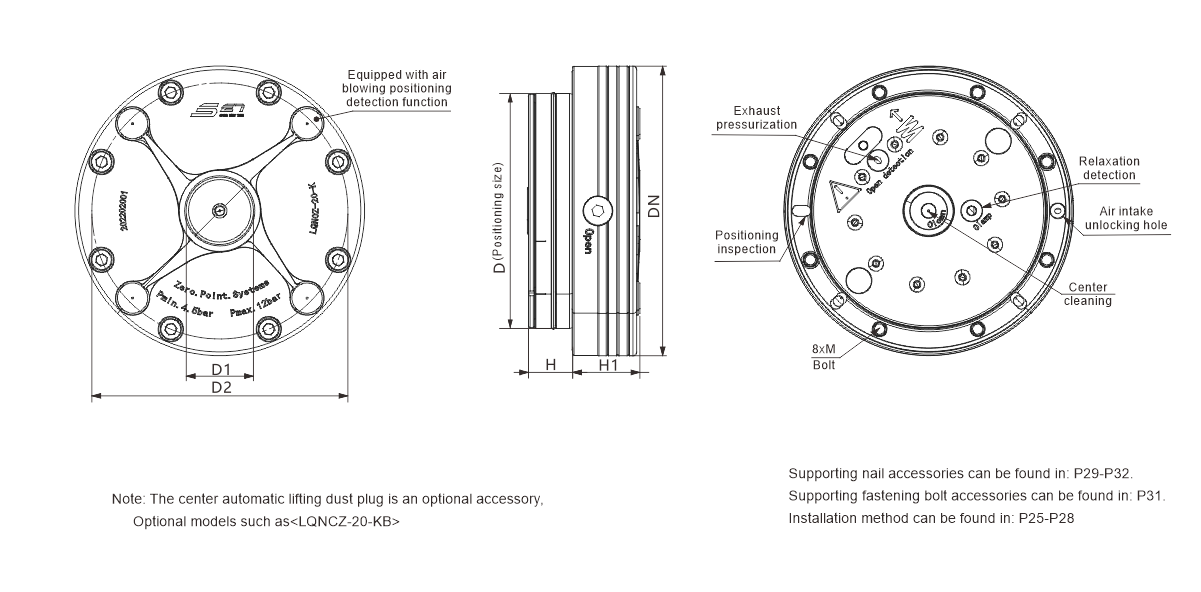

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blow air Weight(kg)
LQNCZ-20-K Gas pressure 17  55 √ 4.25
LQNCZ-40-K Gas pressure 40 105 √

5.8
LQNCZ-60-K Gas pressure 52  130 √ 8.2

Order number ØDN

ØD
(k7)

 ØD1 ØD2 H

H1(±0.005)

 M
LQNCZ-20-K 138  112 112  122 32  32 M6
LQNCZ-40-K 172 140 152  152 31 35 M8
LQNCZ-60-K 188  150 150  166 28 35 M8
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System
  • Zero Point Clamping System

Automatic Zero Positioner

  1. Positioning material hardened stainless steel
  2. Size (mm) with a diameter of 138x53
  3. Clamping force (kN) 17
  4. Tension FORCE (kN) 55
  5. Repeatable positioning accuracy (mm) ＜0.005mm
  6. Release pressure (MPa) Min0.45 / Max1.2
  7. Temperature Operating range (℃) -20~80
  8. Eccentric distance (mm) ±5
