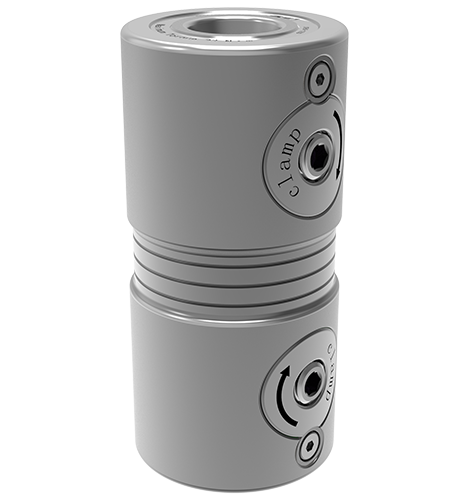

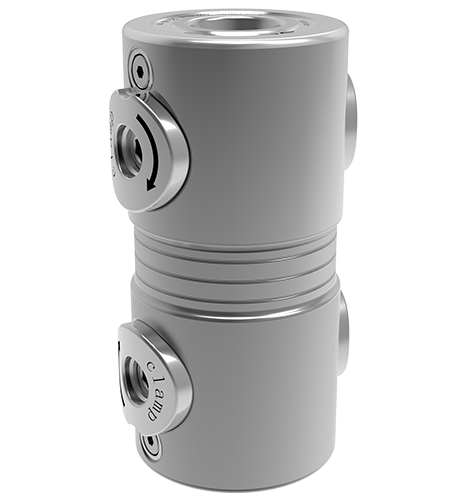

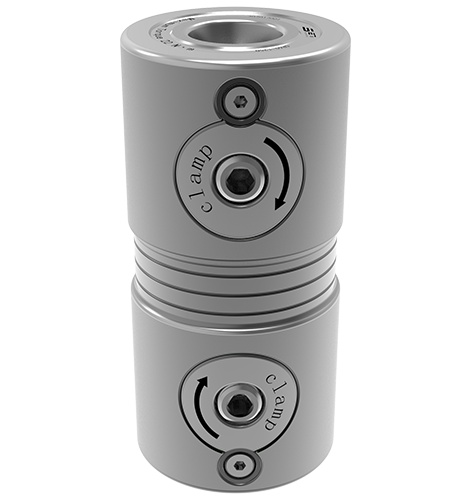

Manual Conical Pull-down Type (Double-head Type)

  • Repetitive positioning accuracy ＜ 0.005mm
  • Clamping force: 8kN
  • Allowable fastening torque: 8Nm
  • Manual Conical Pull-down Type (Double-head Type)
  • Manual Conical Pull-down Type (Double-head Type)
  • Manual Conical Pull-down Type (Double-head Type)
Detail drawing
  • Manual Conical Pull-down Type (Double-head Type)
  • Manual Conical Pull-down Type (Double-head Type)
  • Manual Conical Pull-down Type (Double-head Type)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Its material is hardened stainless steel. It can be unlocked and clamped by manual operation.

The repetitive positioning accuracy ＜ 0.005mm. The clamping force of the single locator is 8kN. Its allowable fastening torque is 8Nm.

It applies to moulds' machining and assembly fields. It is suitable for adjusting the center distance operating mode of the locator quickly.

Manual Conical Pull-down Type (Double-head Type)
Product Features

  • It can be unlocked and clamped by manual operation;

  • Repetitive positioning accuracy ＜ 0.005mm;

  • It applies to moulds' machining and assembly fields;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • It has high clamping force;

  • It is suitable for adjusting the center distance operating mode of the locator quickly.

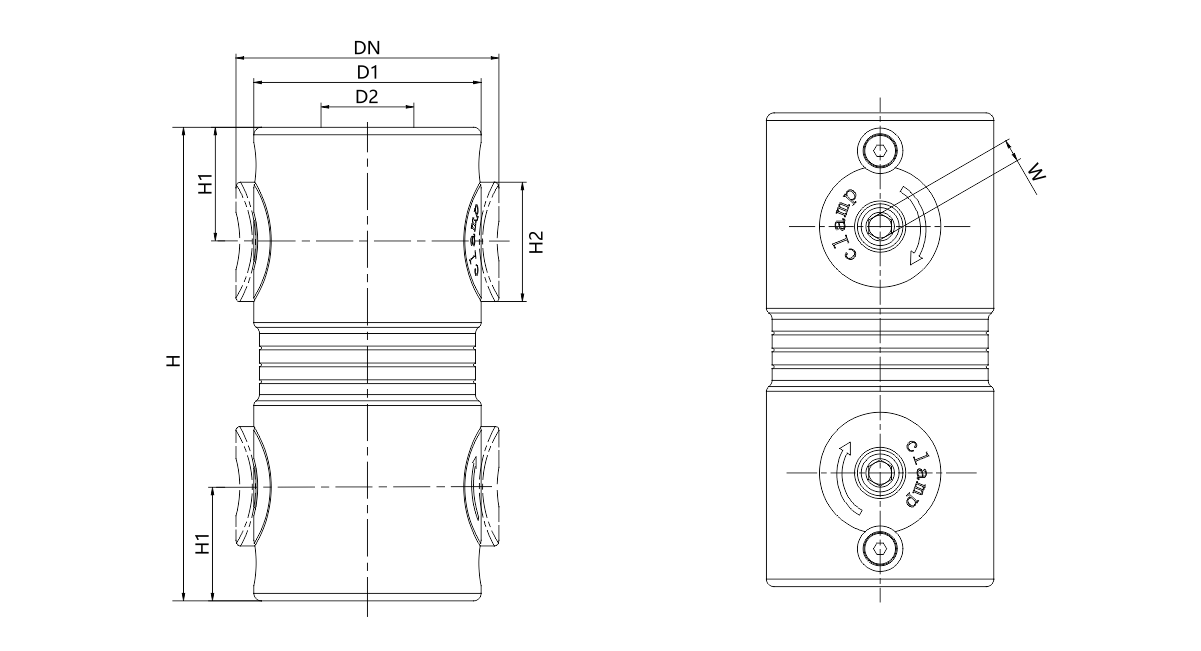

Product dimension diagram

Dimension number Unlocking method Clamping force (kN) Allowable fastening torque (Nm) Weight (kg)
CP40-80D Manual operation 8 8 2
CP60-125D Manual operation 15  22 2.6
CP80-160D Manual operation 25 50 5.8

Dimension number DN D1 ØD2 H (±0.01)

H1

 H2 W
CP40-80D 46 40 12 80 20 22 4
CP60-125D 69 60  18 125 30 32 6
CP80-160D 91 80 22 160 40 44 8
