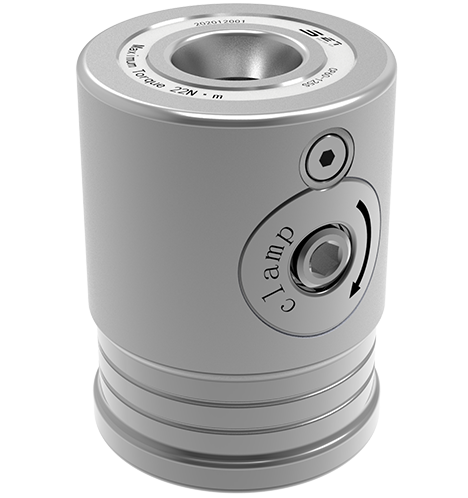

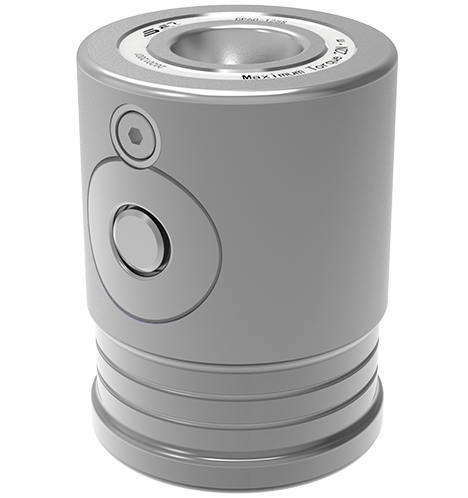

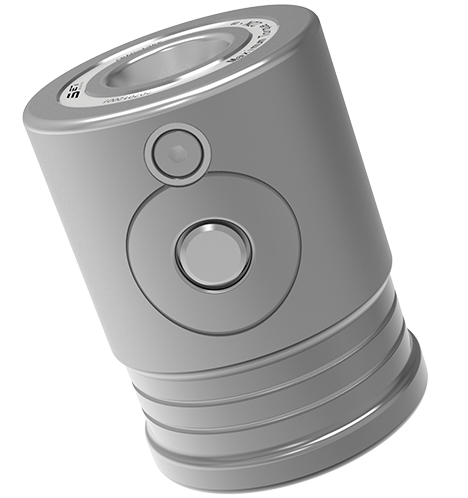

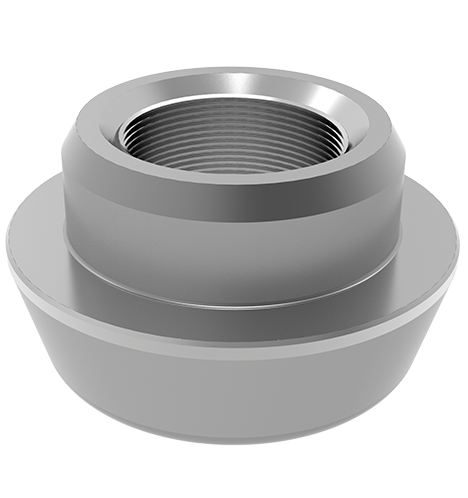

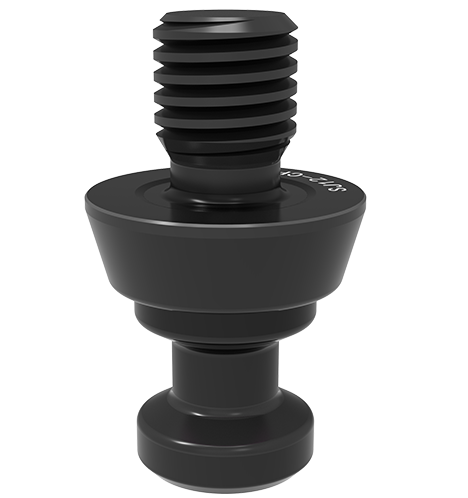

Manual Conical Pull-down Type (Single-head Type)

  • Repetitive positioning accuracy ＜ 0.005mm
  • Clamping force: 8kN
  • Allowable fastening torque: 8Nm
  • Manual Conical Pull-down Type (Single-head Type)
  • Manual Conical Pull-down Type (Single-head Type)
  • Manual Conical Pull-down Type (Single-head Type)
Detail drawing
  • Manual Conical Pull-down Type (Single-head Type)
  • Manual Conical Pull-down Type (Single-head Type)
  • Manual Conical Pull-down Type (Single-head Type)
Contact us
SET Industrial | Zero-Point Positioning & CNC Workholding Product parameters SET Industrial | Zero-Point Positioning & CNC Workholding Drawing SET Industrial | Zero-Point Positioning & CNC Workholding Data download SET Industrial | Zero-Point Positioning & CNC Workholding Related accessories SET Industrial | Zero-Point Positioning & CNC Workholding Product Technical FAQs SET Industrial | Zero-Point Positioning & CNC WorkholdingSourcing & Ordering FAQs
Product Overview

Its material is hardened stainless steel. It can be unlocked and clamped by manual operation.

The repetitive positioning accuracy ＜ 0.005mm. The clamping force of the single locator is 8kN. Its allowable fastening torque is 8Nm.

It applies to moulds' machining and assembly fields. It is suitable for adjusting the center distance operating mode of the locator quickly.

Manual Conical Pull-down Type (Single-head Type)
Product Features

  • It can be unlocked and clamped by manual operation;

  • Repetitive positioning accuracy ＜ 0.005mm;

  • It applies to moulds' machining and assembly fields;

SET Industrial | Zero-Point Positioning & CNC Workholding

  • Material: hardened stainless steel;

  • It has high clamping force;

  • It is suitable for adjusting the center distance operating mode of the locator quickly.

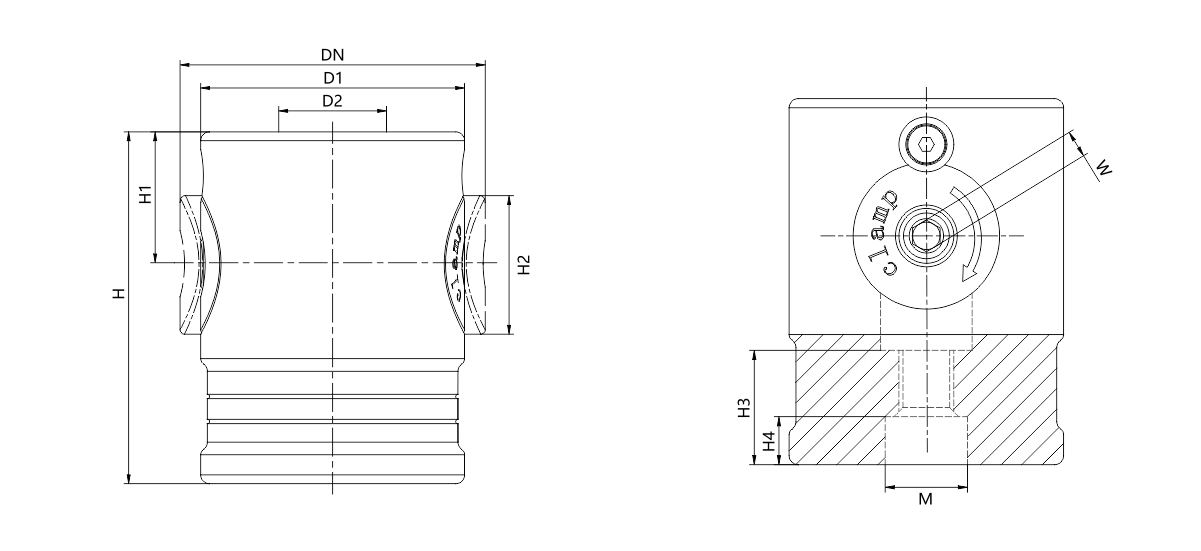

Product dimension diagram

Dimension number Unlocking method Clamping force (kN) Allowable fastening torque (Nm) Weight (kg)
CP40-50S Manual operation 8 8 0.5
CP60-80S Manual operation 15  22 1.6
CP80-100S Manual operation 25 50 3.8

Dimension number DN D1 ØD2 H (±0.01)

H1

 H2 H3 H4 W M (H7)
CP40-50S 46 40 16 50 20 22 18 7.5 4 12
CP60-80S 69 60  25 80 30 32 25 10.5 6 18
CP80-100S 91 80 32 100 40 44 31 12.5 8 22
