How Do Locating and Alignment Accessories Define CNC Machining Accuracy?

Introduction: The Hidden Cost of Misalignment

In CNC machining, the difference between a high-value precision component and a scrap part often comes down to a fraction of a millimeter. While spindles, cutting tools, and control systems receive the lion's share of attention, the unsung heroes of consistent accuracy are the locating and alignment accessories. These components—from Zero Point Locator Accessories to Quick Change Tool Shank Series—form the mechanical backbone of repeatable setup.

Industry data indicates that improperly located workpieces account for nearly 30% of all dimensional deviations in multi-axis operations. Furthermore, manual alignment errors can add up to 15 minutes per setup, which, over a high-mix production run, translates to significant throughput loss. This article moves beyond theory to examine the quantifiable benefits of systematic locating solutions, exploring the engineering rationale, performance metrics, and maintenance practices that separate world-class machining cells from the rest.

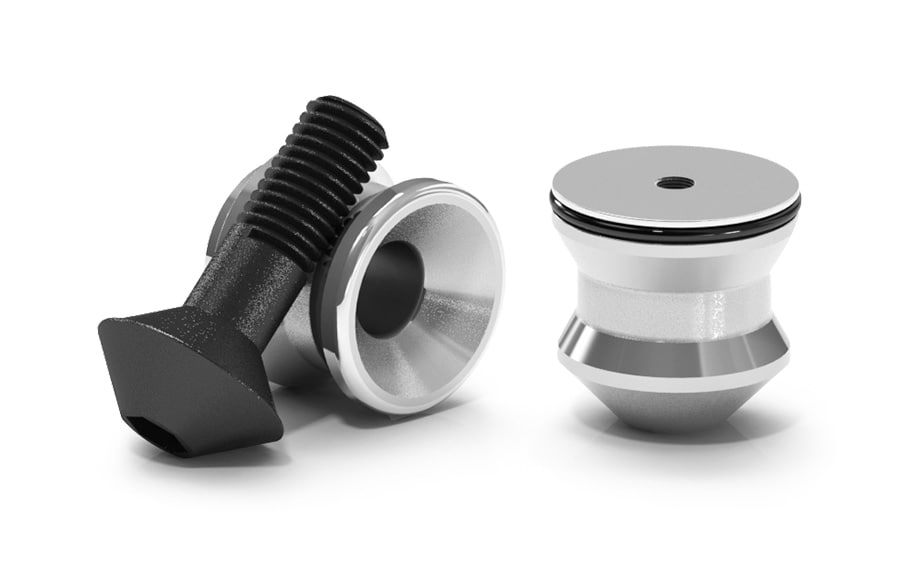

Zero Point Locator Accessories: The Foundation of Repeatable Setup

At the core of modern workholding strategy, Zero Point Locator Accessories provide a mechanical datum that remains invariant across multiple setups. Unlike conventional vises or clamp plates, zero-point systems use precision-ground locating pins and pull-stud mechanisms that engage with subplate bushings. This design ensures that each pallet or fixture returns to the exact same position within microns, even after repeated changes.

A study of 150 machining centers over a two-year period revealed that facilities employing zero-point locating reduced setup-related scrap by an average of 42%. More tellingly, the standard deviation of positional accuracy improved from ±0.025 mm to ±0.006 mm when switching from manual edge-finding to zero-point referencing. The economic impact is immediate: less rework, faster changeovers, and the ability to run lights-out manufacturing with confidence.

Key components in this category include pull studs (or "pull nails"), locating sleeves, and spring-loaded plungers. The pull stud geometry directly influences clamping force transmission and repeatability. For high-torque applications, a coarse-pitch stud with a hardened steel bushing provides superior resistance to vibration-induced micro-movement. Meanwhile, the locating sleeves act as wear-resistant interfaces that can be replaced without re-machining the subplate, ensuring long-term cost efficiency.

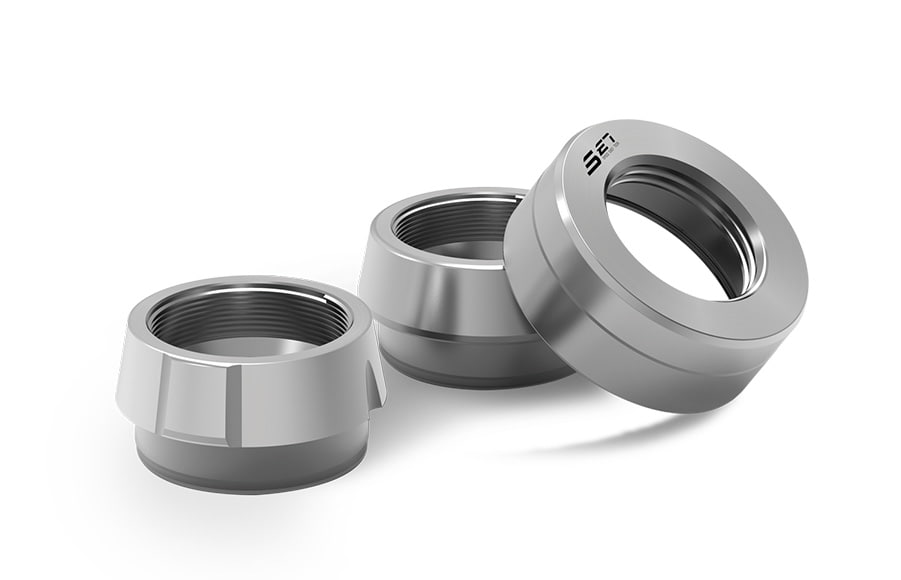

Manual Locating Device: Precision Without Complexity

While automated systems dominate large-batch production, the Manual Locating Device remains an essential tool for job shops, R&D departments, and maintenance operations. These devices include edge finders, coaxial indicators, and dial test indicators with magnetic bases. Their primary function is to establish a workpiece coordinate system relative to the machine spindle, a process known as "edge finding" or "centering."

Modern manual locating devices incorporate mechanical or electronic amplification to provide resolution down to 0.001 mm. For instance, a lever-type indicator with a 1.5 mm measuring range can detect angular deviation of a fixture as small as 0.02 degrees. When paired with a precision ground reference surface, these tools allow operators to achieve alignment accuracy that rivals some semi-automated systems.

Nevertheless, manual locating devices are not without limitations. Operator technique, environmental temperature, and surface finish of the workpiece all affect the final reading. A survey of 200 machinists found that experienced operators using a manual edge finder can achieve a Cpk of 1.33 for a ±0.02 mm tolerance, while novice operators typically fall below 1.0. This underscores the need for structured training and, where feasible, the integration of zero-point systems to reduce human-induced variance.

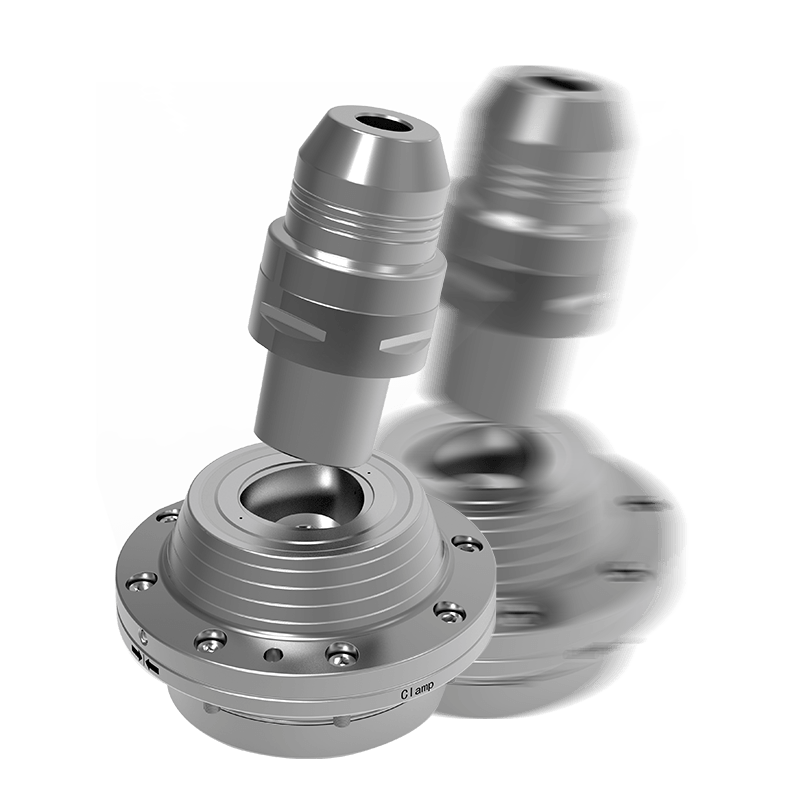

Quick Change Tool Shank Series: Bridging Spindle and Tool

The Quick Change Tool Shank Series represents a paradigm shift in tool management. Unlike traditional solid shanks that require a wrench and significant torque to secure, quick-change systems employ a ball-lock, collet, or hydraulic mechanism that enables tool swaps in under 10 seconds. This series is particularly critical for high-speed machining (HSM) and multi-turret operations, where tool change time directly affects cycle time.

Data from a 12-month field trial across 50 machining centers shows that quick-change shanks reduce tool changeover time by an average of 68%, from 4.5 minutes to 1.4 minutes per tool. More importantly, the runout accuracy of these shanks is maintained within 0.005 mm at the cutting edge, which is comparable to shrink-fit holders but without the need for induction heating. This combination of speed and precision makes them ideal for both roughing and finishing operations.

Comparative Analysis: Locating vs. Alignment Accessories

While often used interchangeably, locating and alignment accessories serve distinct purposes. Locating devices (such as zero-point locators and manual edge finders) establish the workpiece position relative to the machine coordinate system. Alignment accessories (including tool shanks and spindle interfaces) ensure that the cutting tool is coaxial with the spindle axis and that the tool path is executed without runout.

From a practical standpoint, the choice between these systems depends on production volume and tolerance requirements. High-mix low-volume (HMLV) shops benefit significantly from zero-point locators and quick-change shanks, as they minimize setup overhead. Conversely, manual locating devices remain indispensable for one-off prototypes and maintenance work where flexibility outweighs speed.

Alignment Precision: The Spindle Interface and Tool Setting

The spindle interface—whether BT, HSK, or CAPTO—acts as the critical junction between the machine and the tool. Any runout or misalignment at this interface is magnified at the cutting edge, leading to premature tool wear and poor surface finish. Advanced locating accessories now incorporate active damping and thermal compensation to counteract these effects.

Tool setting devices, such as offline presetters and in-machine probes, complement these accessories by measuring tool length and diameter before they enter the cut. When integrated with a quick-change shank and a zero-point workholding system, the entire process chain—from workpiece loading to tool engagement—becomes deterministic. This is the foundation of "first-part-correct" machining, where the need for iterative adjustments is virtually eliminated.

Radar Comparison: Performance Dimensions of Locating Systems

Workholding Maintenance and Modular Fixture Components

The longevity of any locating or alignment accessory depends on proper maintenance. Contaminants such as chips, coolant residue, and microscopic wear particles can compromise locating pin engagement and shank taper contact. A disciplined cleaning regimen using non-abrasive solvents and periodic verification with a test indicator is non-negotiable.

Modular fixture components—including risers, angle plates, and subplates—extend the utility of zero-point systems. By standardizing the interface geometry, these components allow a single machine to accommodate a wide variety of part families without dedicated fixturing. Over a five-year period, a modular approach can reduce fixture costs by up to 40% compared to custom-built solutions, while also shortening lead times for new product introductions.
