Zero Point Quick Change Workholding Solution for Heavy-Duty Mold Horizontal Boring Mills

Source：Zero Point Clamping System

Introduction

Horizontal boring mills are essential processing equipment for deep hole boring and precision cavity machining in the heavy mold manufacturing industry. Nevertheless, most mold factories face consistent processing limitations caused by traditional clamping methods, including time-consuming workpiece setup, inconsistent manual alignment accuracy, inefficient batch changeover, and unstable positioning for large and heavy mold components.
Suzhou SET Industrial Equipment System Co., Ltd. (SET) specializes in the R&D and manufacturing of industrial zero point positioning systems. To address the common pain points in heavy mold boring processing, SET has developed a dedicated zero point quick-change workholding solution for horizontal boring mills. With micron-level repeat positioning accuracy and rigid heavy-load locking structure, the system effectively improves the stability and efficiency of heavy mold machining, helping mold manufacturers achieve flexible and high-yield production workflows.

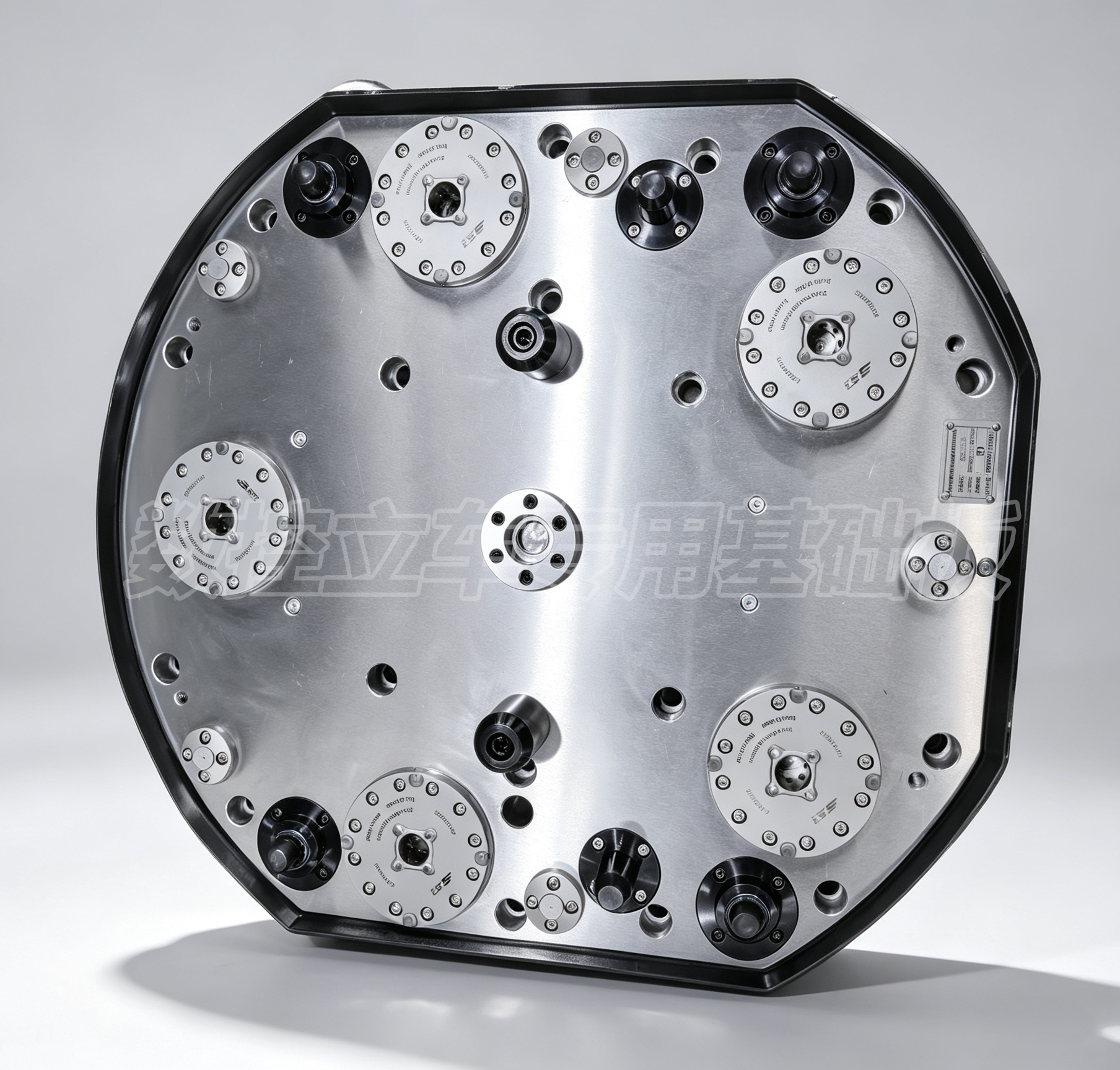

zero point positioning system

1. Industry Challenges: Key Restrictions in Heavy Mold Horizontal Boring Machining

Heavy molds, including automotive panel molds, large injection molds, and die-casting molds, are characterized by oversized dimensions, heavy weight, strict precision requirements, and high-mix low-volume production characteristics. Traditional clamping and positioning methods create multiple processing limitations for horizontal boring operations:
Low clamping efficiency: Operators typically spend 2 to 3 hours on dial indicator alignment and pressure plate adjustment during workpiece replacement. Extended machine idle time greatly reduces overall equipment effectiveness, with most workshops maintaining machine utilization below 50%.
Unstable positioning repeatability: Manual alignment results vary based on operator experience, often producing positioning deviations above 0.02mm. Such inconsistencies easily cause out-of-tolerance issues in deep hole boring coaxiality and cavity positional accuracy, increasing scrap and rework ratios.
Workpiece vibration and displacement under heavy cutting: Conventional pressure plate clamping provides scattered holding force. During heavy stock removal, large mold workpieces tend to vibrate or shift slightly, leading to poor surface finish quality and accelerated tool wear.
Poor production flexibility: Switching between different mold types often requires fixture readjustment and benchmark recalibration. The traditional workflow cannot fully adapt to fast delivery demands for multi-variety and small-batch mold orders.

2. Solution Advantages: Technical Features of SET Zero Point Positioning System

The SET zero point clamping system is a high-precision modular quick-change workholding solution developed for heavy-duty CNC machine tools. The mainstream model LQNCZ-20-K is structurally optimized for heavy-load cutting environments, integrating precision positioning, rigid locking, operational detection, and full anti-contamination protection to perfectly match horizontal boring mill processing conditions.

2.1 Micron-level Repeat Positioning Eliminates Manual Benchmark Errors

Adopting a conical self-centering and three-way steel ball locking structure, the SET zero point system delivers stable repeat positioning accuracy within 0.005mm, effectively minimizing errors caused by manual dial alignment.
Once fixtures or workpieces are calibrated for the first time, pallets can circulate freely between machine tools and offline preset stations without repeated alignment. Unified positioning benchmarks ensure consistent dimensional accuracy across multi-process and cross-machine production procedures.

2.2 Heavy-load Rigid Locking for Stable Large Mold Machining

Each LQNCZ-20-K zero point locator provides 17kN standard clamping force with secondary pressure boosting support. The structural design eliminates radial clearance under heavy cutting conditions, delivering strong resistance against machining vibration and cutting impact.
All positioning units feature fully enclosed housing and complete sealing structures, effectively isolating iron chips, cutting fluid, and workshop contaminants. The system maintains reliable performance through millions of working cycles in harsh wet machining environments.

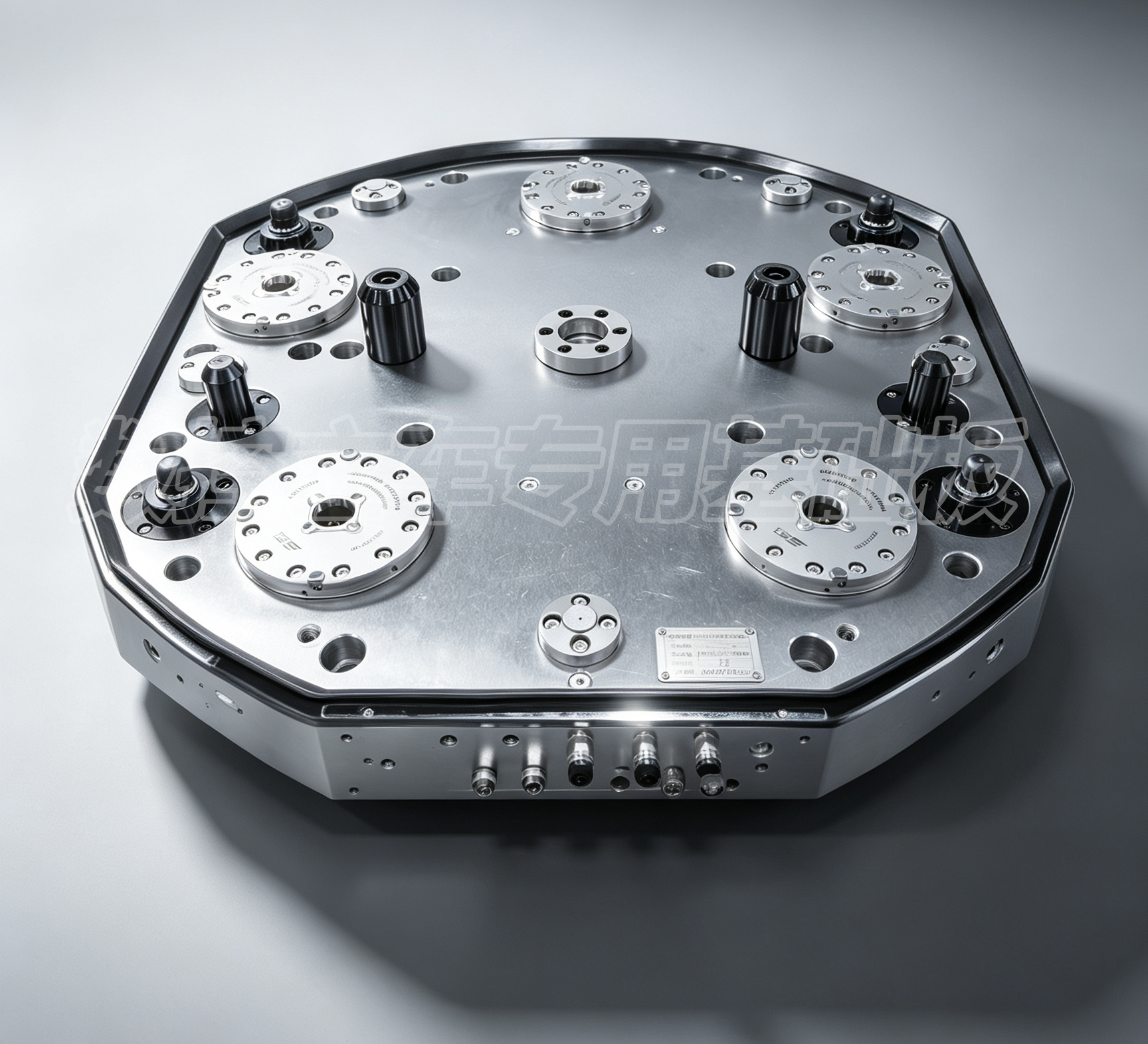

zero point positioning system

2.3 Second-level Quick Change Greatly Improves Setup Efficiency

Matched with SET zero point pallets and T-slot base plates, the solution supports fully offline workpiece presetting and off-machine clamping. Machine tools no longer stay idle during fixture replacement and workpiece adjustment.
Workpiece changeover time is reduced from traditional 2 hours of manual clamping to less than 10 seconds of zero-point pallet swapping. On-site application data shows approximately 90% reduction in clamping time and improved machine utilization rate above 90%.

2.4 Intelligent Detection and Automatic Cleaning Reduce Operational Risks

Each zero point locator is equipped with clamping status detection and air tightness monitoring modules. The system triggers alert signals if pallet fitting is incomplete, effectively avoiding positioning failure caused by residual chips or foreign particles.
Built-in central air-blowing structures automatically clean positioning contact surfaces before pallet installation, ensuring stable and consistent precision during continuous batch machining cycles.

3. Modular Solution Composition for Horizontal Boring Mills

SET provides a complete modular zero point workholding system tailored for heavy mold horizontal boring machining. The full set of components is compatible with most mainstream CNC horizontal boring machines and horizontal machining centers on the market.

3.1 Core Component Configuration

SET Zero Point Base Plate: Customized for machine T-slot worktables with high-precision flatness, serving as the unified positioning benchmark carrier.
SET LQNCZ-20-K Zero Point Locator: Fully sealed heavy-load positioning unit with integrated air-blow cleaning and signal detection interfaces.
SET Zero Point Pallet: Reinforced structural pallet for heavy mold installation, with pre-mounted positioning pull studs for fast and accurate docking.
SET Positioning Pull Studs: Hardened high-strength pull studs that precisely cooperate with zero point locators to ensure uniform locking force transmission.
SET Offline Presetting Station: Independent off-machine workbench for mold clamping, alignment, and inspection without occupying machine processing time.

3.2 Applicable Processing Scenarios

●  Heavy mold types: Automotive cover molds, large injection molds, die-casting molds
● Machining processes: Deep hole boring, precision cavity milling, 5-sided machining, multi-process composite machining
● Production modes: High-mix low-volume production, flexible manufacturing cells, robotic automated loading and unloading upgrading

4. Standard 4-step Workflow for Efficient Machining

The SET zero point positioning system features simple and standardized operation, requiring minimal professional training for workshop operators. The entire working process is simplified into four steps:
Benchmark Calibration: Fix the zero point base plate on the horizontal boring mill worktable and complete one-time coordinate calibration to establish a stable unified machining benchmark.
Offline Workpiece Clamping: Install and fix heavy molds on zero point pallets at the offline preset station, complete alignment and precision inspection off-machine.
Fast Pallet Docking: Lift the preset pallet onto the machine worktable, align pull studs with locators, and complete automatic locking within 10 seconds.
Continuous Production Cycling: Release air pressure to unlock pallets after machining is completed, replace with new pre-adjusted pallets, and maintain continuous machine operation without downtime.

5. Practical Production Benefits and Data Improvement

Mass on-site application cases in mold manufacturing workshops have verified comprehensive improvements in efficiency, precision, and production cost after adopting the SET zero point quick-change system.

5.1 Efficiency Improvement

Workpiece setup time is shortened from 2 hours of manual operation to within 10 seconds. Machine utilization rate increases from an average of 50% to over 90%. Mold batch changeover cycle is greatly optimized from half-day manual adjustment to approximately 5 minutes pallet replacement.

5.2 Precision Stability Upgrade

The repeat positioning accuracy is optimized from traditional ±0.02mm manual alignment to stable ±0.005mm system positioning. Workshop mold scrap and rework rates are reduced from 5% to below 0.5%. Deep hole boring coaxiality can be steadily controlled within 0.01mm, meeting high-standard precision mold production requirements.

5.3 Production Cost Reduction

The system reduces approximately 95% of manual alignment and fixture adjustment working hours, allowing single operators to manage multiple machine tools simultaneously. Stable clamping rigidity reduces workpiece vibration during heavy cutting, lowering tool wear by around 30% and extending tool service life. Fully sealed durable structure extends fixture service cycle up to millions of operations, reducing long-term equipment maintenance and fixture replacement costs.

6. Brand & Manufacturing Strength

Suzhou SET Industrial Equipment System Co., Ltd. has focused on zero point positioning system and quick-change fixture R&D and manufacturing for more than ten years, supporting fully independent production and strict quality control without outsourcing OEM processing.
● Equipped with a professional Suzhou production base and constant-temperature precision testing laboratory, all products undergo three rounds of precision calibration before delivery.
● Possesses independent intellectual property rights and patented technologies in conical self-locking and full anti-chip sealing structures, maintaining stable technical competitiveness in the industrial workholding field.
●  Serves more than 400 mold manufacturing enterprises, with stable repeat customer recognition and long-term participation in professional industry exhibitions such as CCMT.
● Provides localized one-stop services including customized solution design, on-site installation, technical training, and long-term after-sales support.

7. Conclusion

Inefficient manual clamping and unstable positioning are the main factors restricting productivity and precision in heavy mold horizontal boring machining. The SET zero point quick-change workholding solution effectively solves traditional processing pain points through 0.005mm stable repeat positioning, heavy-load rigid locking, second-level pallet changeover, and intelligent anti-contamination protection.
The system helps mold manufacturers reduce production costs, stabilize machining quality, improve equipment operation efficiency, and realize flexible production upgrading. From traditional manual alignment to modern offline presetting and quick pallet swapping, SET provides reliable and cost-effective zero point positioning solutions for heavy mold horizontal boring processing, supporting high-quality development of the precision manufacturing industry.
Enterprises planning horizontal boring mill fixture upgrades can consult the SET technical team with machine type, workpiece size, processing load, and automation demands to obtain customized zero point workholding configuration solutions.
